Overview
The Wing 20C+ II features a new, slimmer shape, that takes advantage of the updated UCI rules.
This basebar utilizes the A3 platform, which allows the use of the A2 Standard, A2 Race and ASC Pro brackets. Along with the other A3 accessories.
The basebar has the option for adjustment, turning the bar over changes the height of the hand grip and the aerobar by 20mm.
The Wing 20c+ II comes equipped with our new A3 bracket kit.

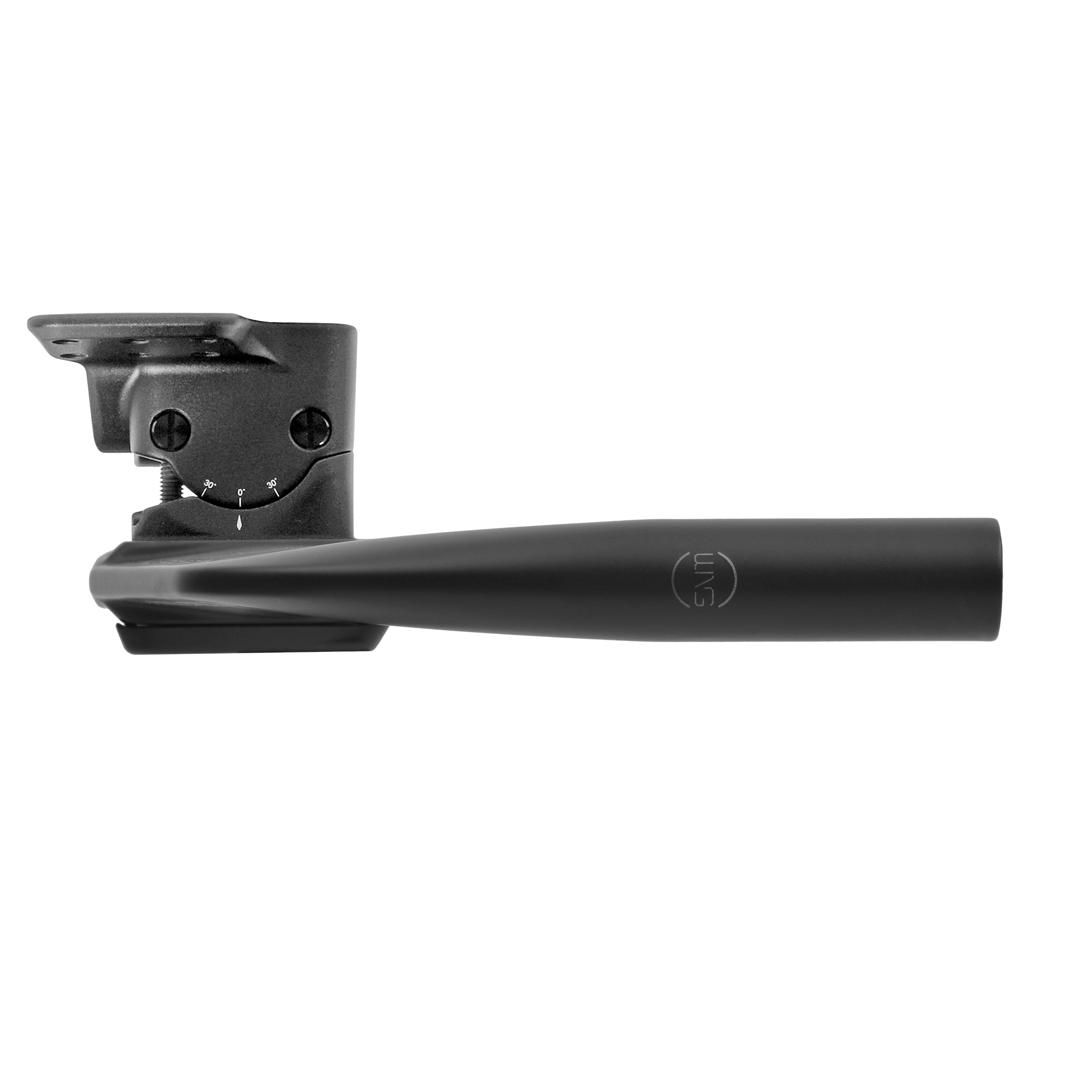

The A3 bracket delivers a new standard of adjustment and versatility for our integrated platform. Its reversible design and expanded tilt range now match the capabilities that previously required adaptors with the A2 bracket.
Key Benefits Include
- Independent adjustment of all components for precise tuning
- Effortless usability and proven reliability remain core strengths
- Native compatibility with A3 risers, and with A2 risers via an adaptor
- Extended reach of 30mm and an additional 15° of tilt for greater flexibility
Performance
The Wing 20C+ II offers a combination of aerodynamic integration and supreme fit range. With the change in spec comfort for most users will be increased alongside the performance advantage of lower weight.
Fit Data
-
Armrest offset: -92.5mm to -10mm in 7.5mm steps
-
Armrest Width: 124mm to 254mm in 18.5mm steps
-
Armrest Stack: The minimum is 64mm to 84mm
Accessory Options
Armrest Kits
Extensions
Designed to be paired with Profile Design Extensions - Carbon or Aluminum Versions
-
Profile Design Extensions
- ASC Pro
- ASC Range
- SLC Range
- A Series Range
- Any 22.2mm diameter Extension model (Paired with a Aeria Ultimate Bracket - Sold separately)
Stem and Hydration
The WING 20C+II is ideally paired with the Tri Stem and HSF/Aeria bottle.
Brackets and Risers
Who is it for
This bar is perfect for riders who wish to achieve lower positions than are possible with standard aerobar designs. Unlike other low stack bars it allows fine-tuning of the stack height so the rider is not limited to only one arm pad height. With the Race armrests fitted it is tailored towards riders who intend to be low and narrow to punch the smallest possible hole through the wind.
Tech Specs
-
Basebar Width: 38cm or 42cm (Center-to-Center)
-
Internal Cable Routing: Yes (Stem or Back of the Basebar)
-
Di2 Compatible: Yes
-
Bracket: A3 Bracket Kit
-
Armrest: Not Included
-
Extensions: Not Included
-
Extension Clamp Diameter: 22.2mm
-
Bracket Tilt Adjustment: 0-30°
-
Pursuit OD/ID: 24.1 / 18.9mm
-
ASC Pro Compatible: Yes
-
Construction: Carbon
-
Color: Matte Black
Tech Guide
Torque Settings
-
Extension Clamp: 5Nm
-
Armrest Bolts: 4.7Nm
-
Stem Clamp: 6Nm Max
Weight
-
Basebar: 265g
- Brackets: 204g (pair)
Manuals
Wing 20C+ Installation Instructions
A3 Bracket with A3A BTA Bridge Installation Instructions
A3 Bracket w A3C Bridge Bolt Chart Installation Instructions
