Overview

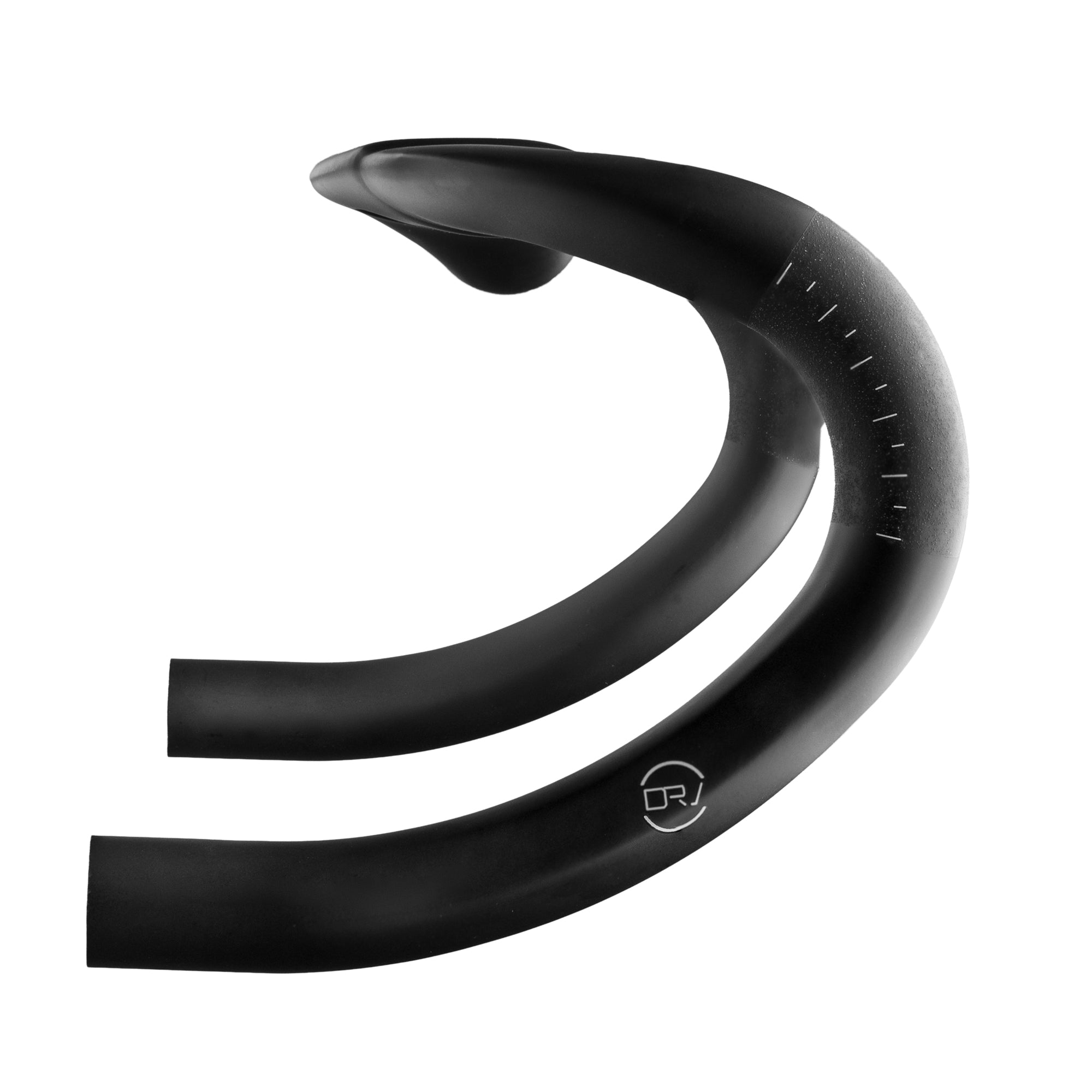

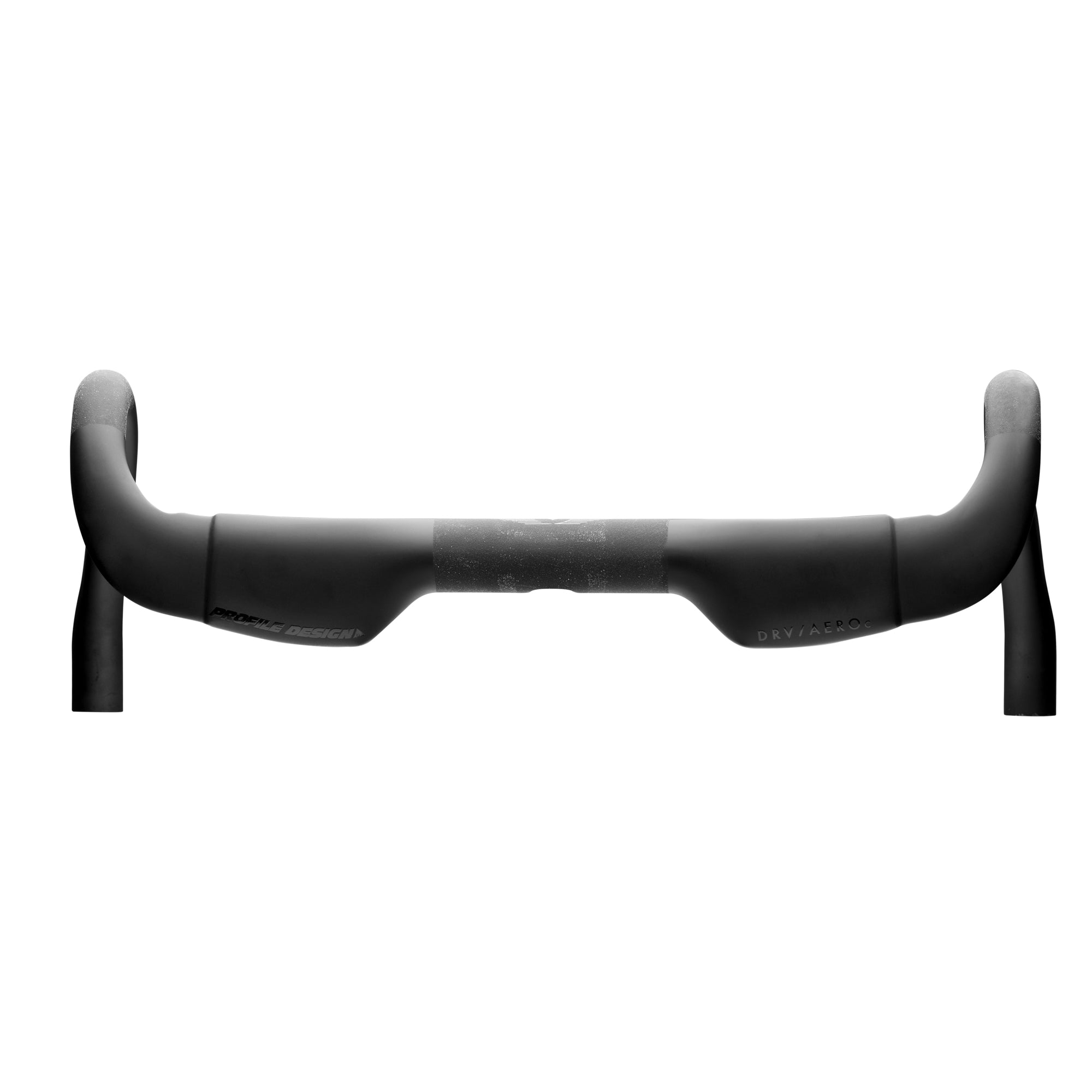

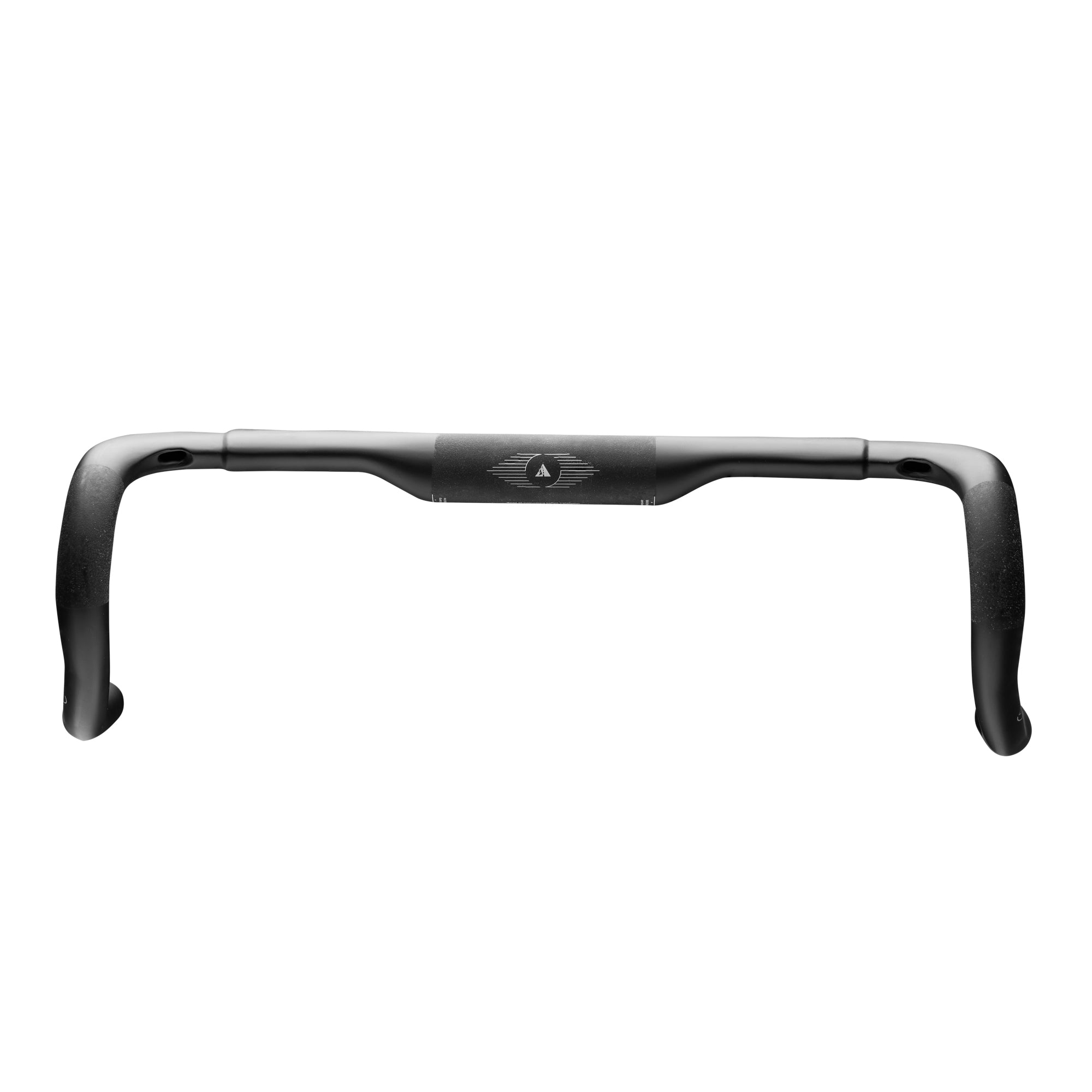

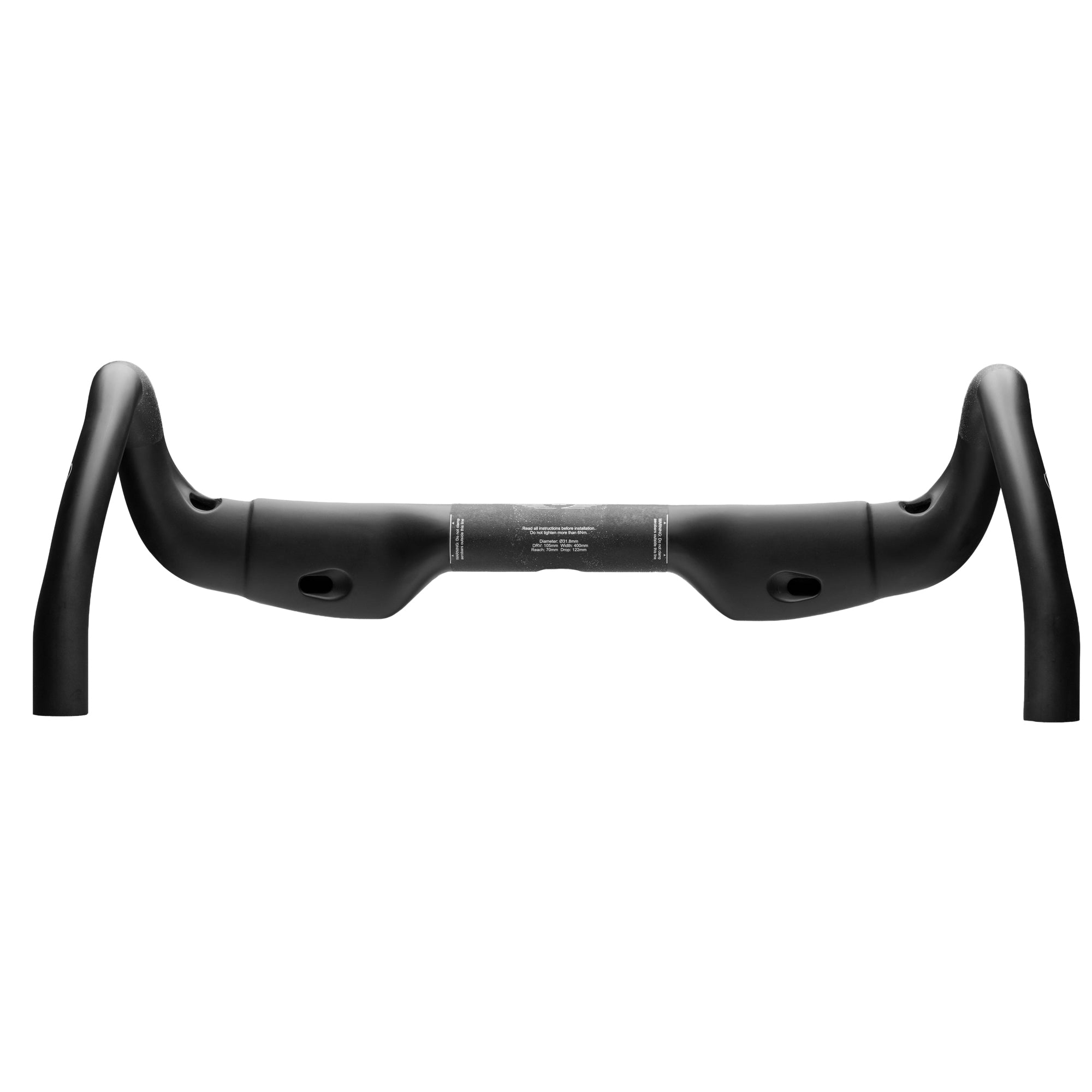

The DRV/AEROc is a high-performance aero road handlebar designed with a truncated airfoil top section, internal cable routing, and aero-shaped carbon drops. It delivers long-distance comfort while its aerodynamic profile helps reduce drag for efficient speed.
Optimized for modern road levers, the AEROc features Profile Design’s DRV ergonomics: a 4.6° ramp angle and a 4° flare in the drops for a natural wrist position and improved control. For extended rides, the bar is also compatible with clip-on aerobars.

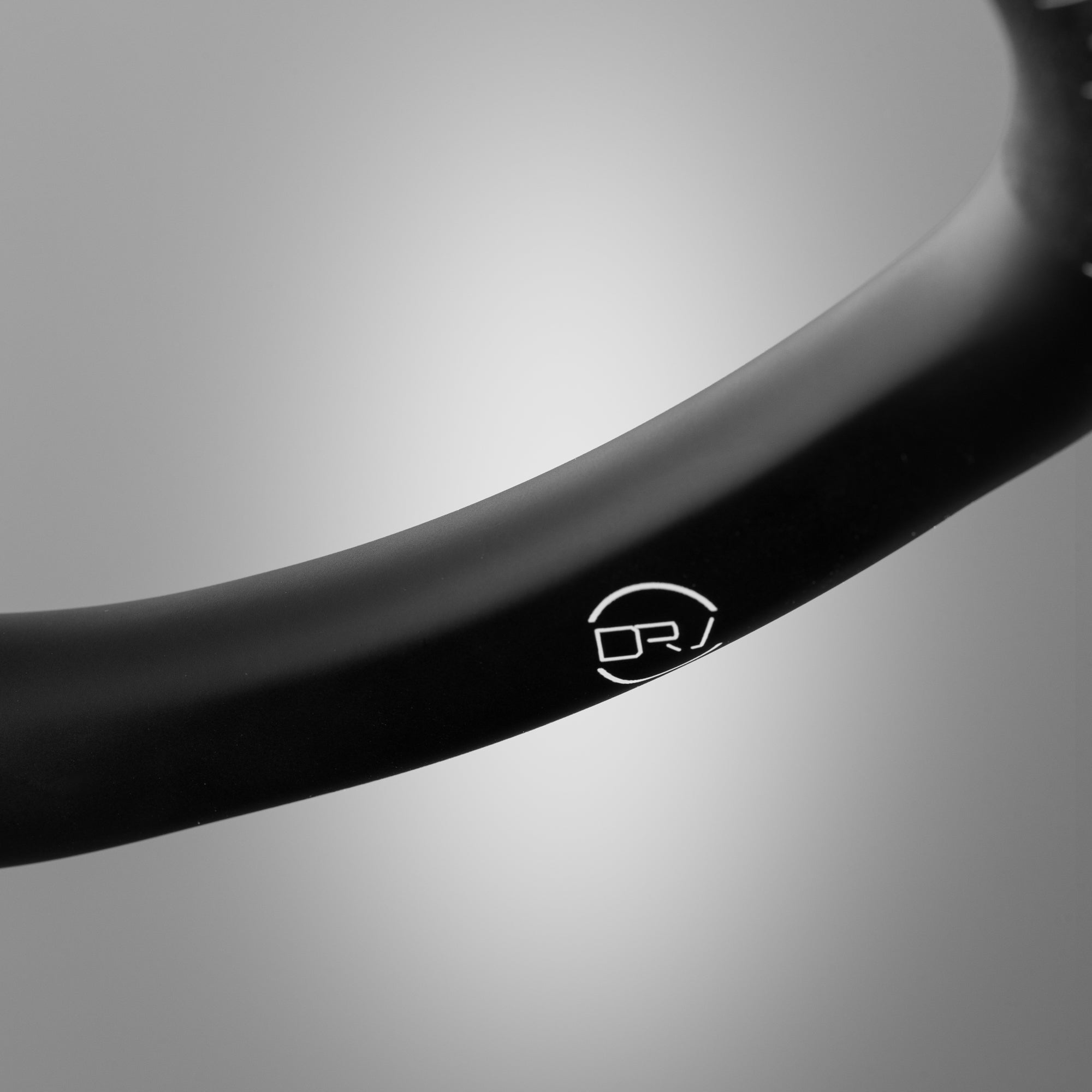

The DRiVe metric by Profile Design pinpoints the precise position in the drops where riders instinctively place their hands. The metric is incorporated into a new series of progressively sized handlebars designed around a cyclist’s most powerful hand positions.
What is your DRiVe?: Gone are the days of simply measuring a drop bar by the standard reach, drop and width. Our DRiVe metric pinpoints the precise position in the drops where riders instinctively place their hands.
-
The DRiVe Metric: The DRiVe (Drop Reach Variant) position is measured via a 73° line beginning at the bar bore. The DRiVe metric pinpoints the line intersection with the drop.
-
DRiVe Reclaims Comfort, Power & Control: Modern drop bar designs are deeply tied to tradition. They are designed based on outdated road bike sizing rendering many of cycling intended hand positions unattainable when riding modern frame geometry. The ride positions that are the most powerful and allow for the most control have now shifted into virtually unattainable positions. DRiVe reclaims many of the ideal positions most critical to comfort, power, and control.
-
Progressive Ergonomics: The tops and hoods complement the powerhouse DRiVe position and the Reach and DRiVe are progressively sized as the bar increases in width. This progressive sizing ensures the most powerful positions remain right where they are needed.
Features
- Carbon construction is ultra-light, compliant, and durable.
- Aero profile top section reduces drag on the leading edge and is UCI-legal.
- 6° drop flare provides ample wrist clearance for sprinting.
- Ergonomic Aero shaped drops offer comfort and superior handling.

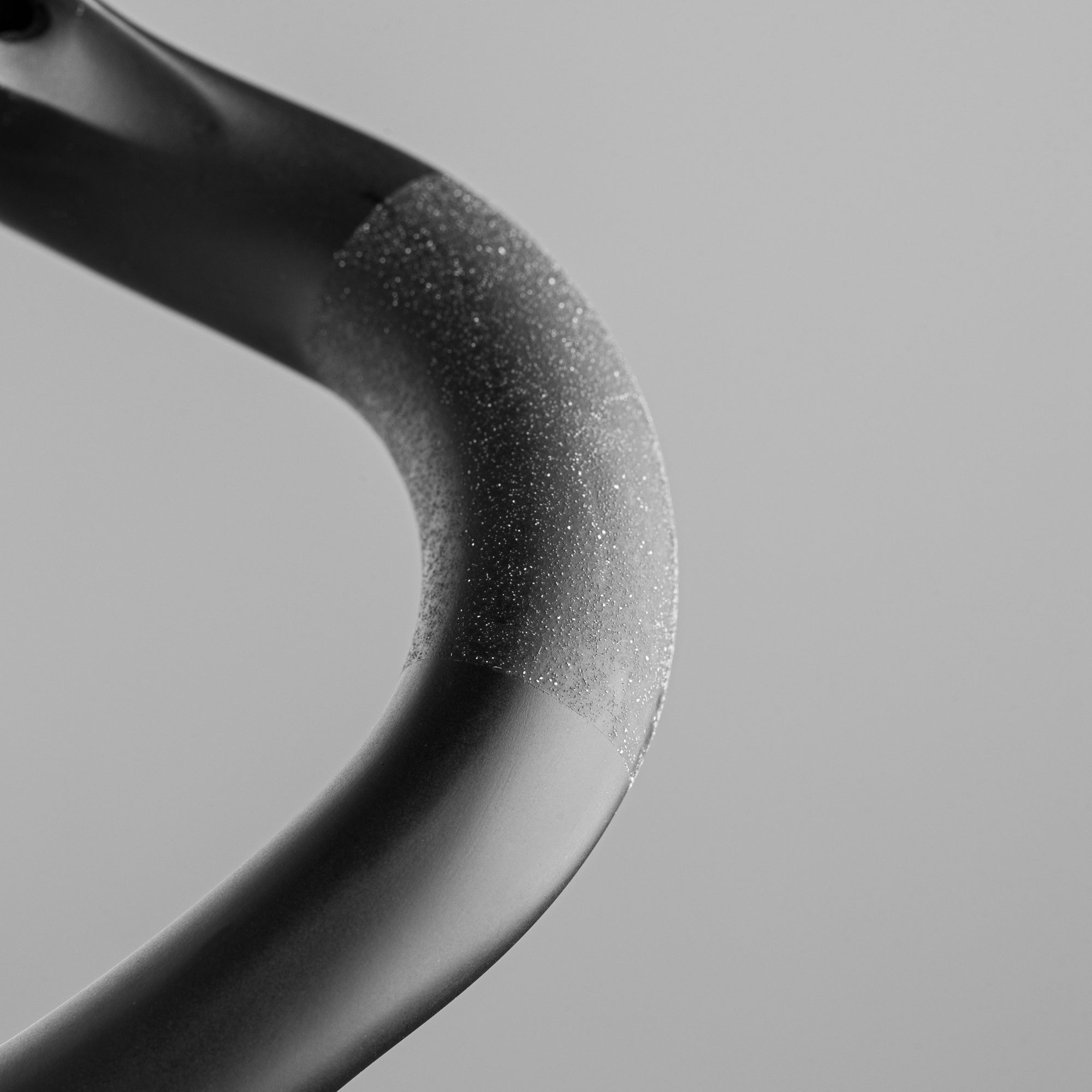

- Brake lever position guides for spot-on control set-up.
- Compatible with both electronic and mechanical shifting.

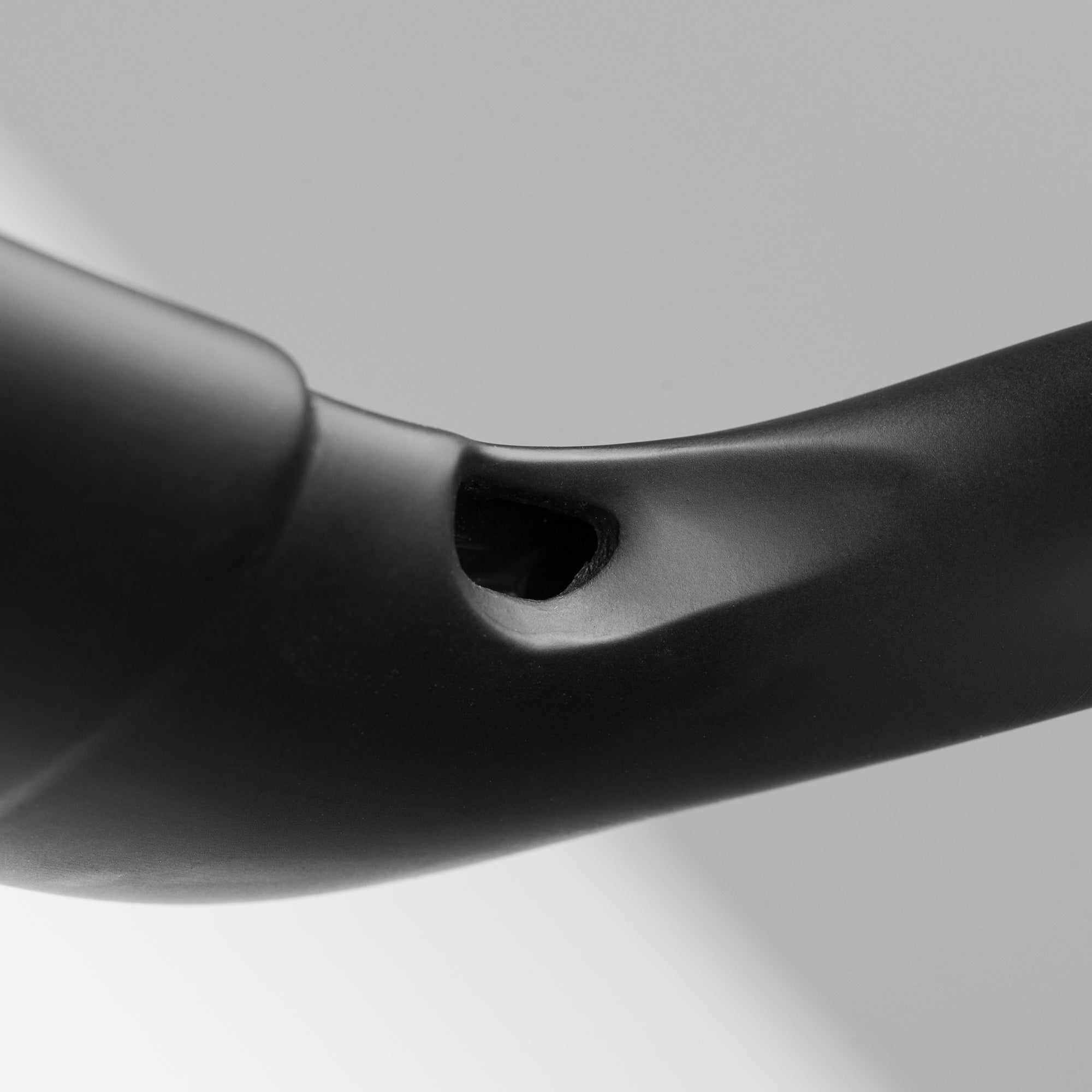

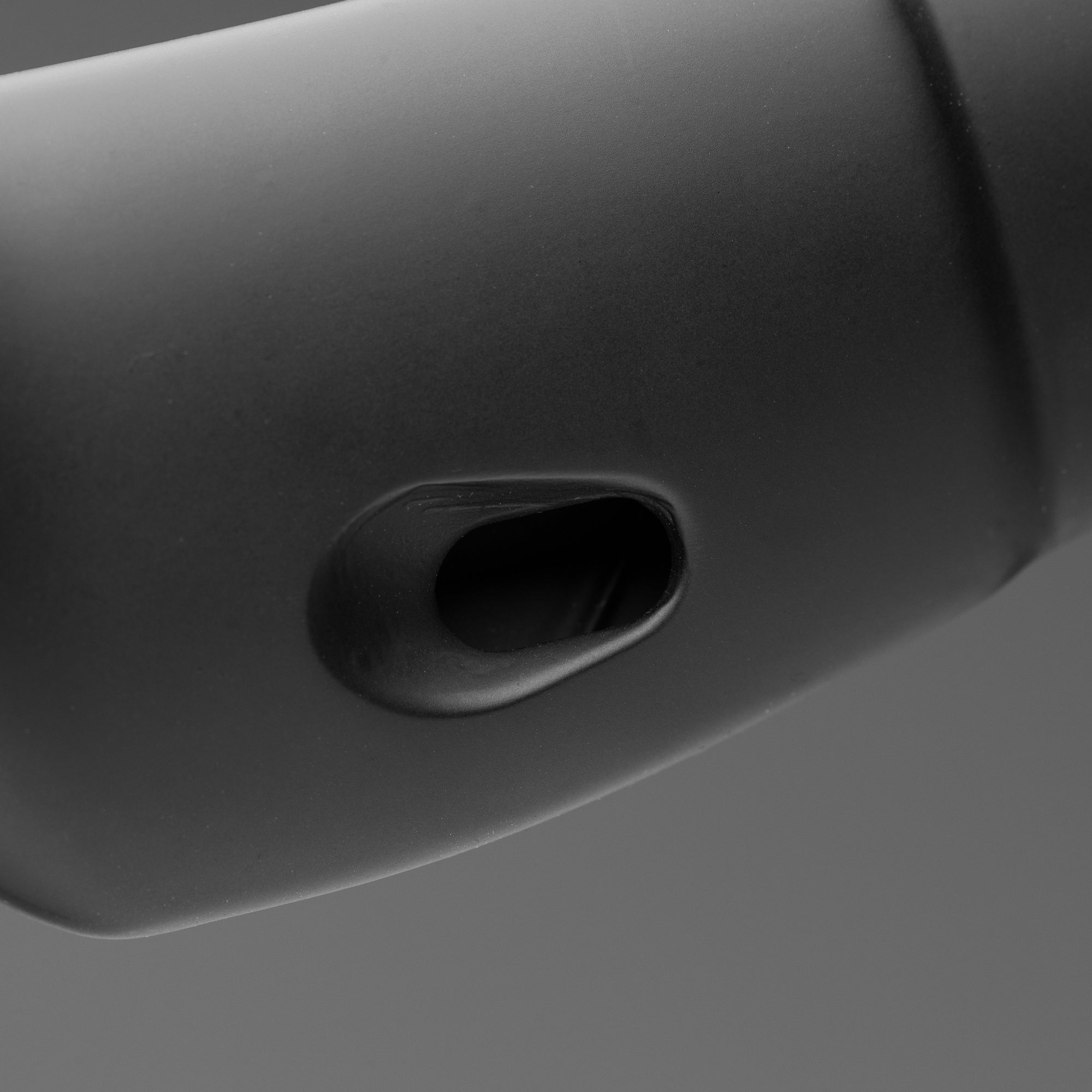

- Full stem internal cable routing.
- Race Fit puts riders into a more comfortable ergonomic riding position.
- Clip on Aerobar compatible - (100mm max width).

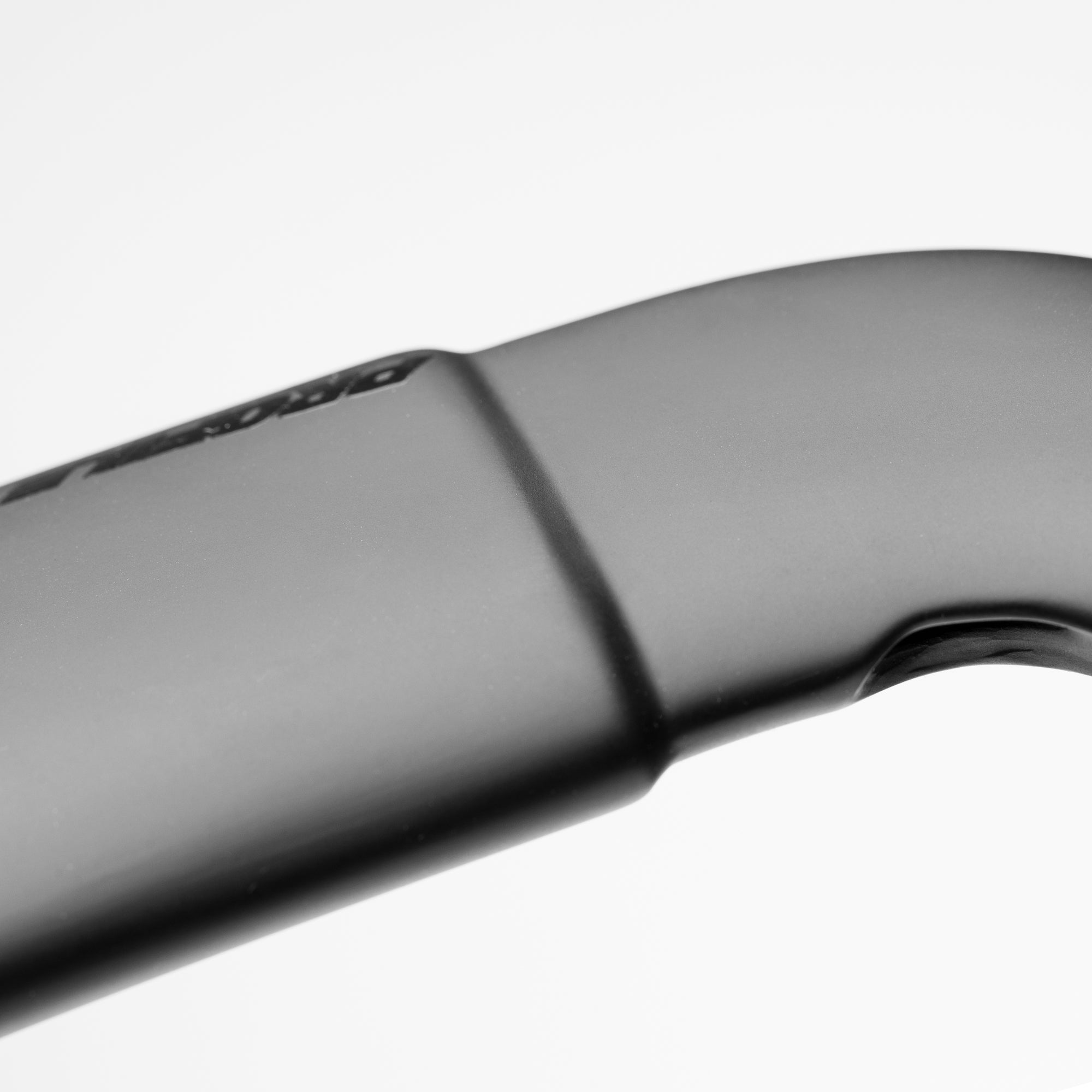

- Bar tape ledge for smooth finishing.
Specifications
-
Width Hoods: 40, 42cm (center to center)
-
Width Drops: 43, 45cm (center to center)
-
Reach: 70mm
-
Drop: 122mm
-
Ramp Angle: 4.6°
-
Drop Flare: 4°
-
Drop Outsweep: 6°
-
Drive: 105mm
-
Bar Clamp Diameter: 31.8mm
-
Aerobar Clip-on Compatible: Yes
-
Clamp Width: 100mm
- Internal Cable Routing: Yes (Mechanical or Di2)
- Stem Internal Cable Routing: Yes
-
Max Brake Lever Torque: 10Nm
-
Max Torque Clamping to Bar: 6Nm
-
Material: Carbon
-
Finish: Matte Black
-
Weight: 235g (42cm)
- Use: Road, Track or Gravel
