Overview

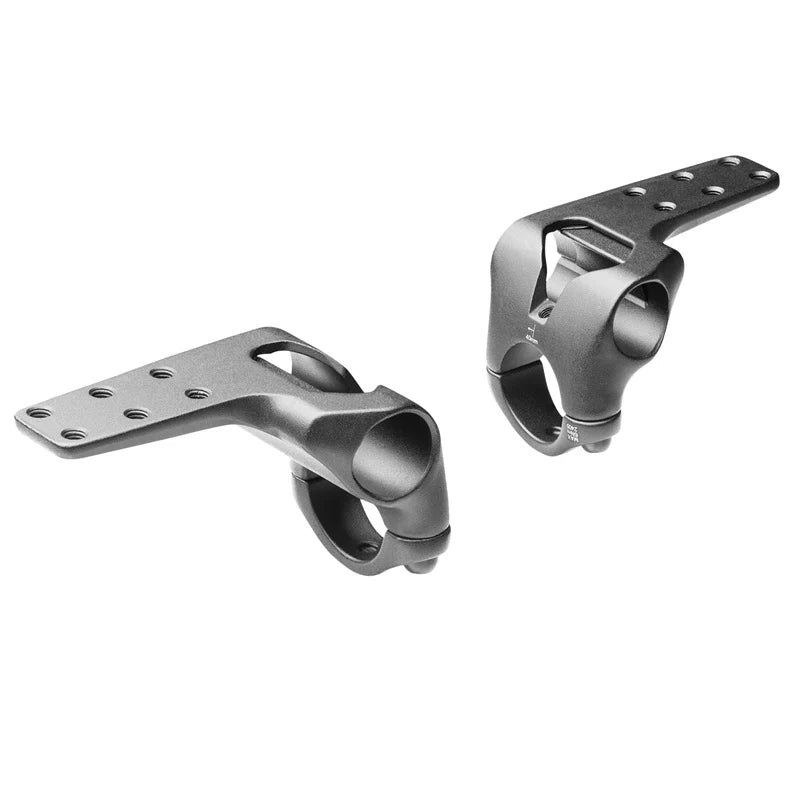

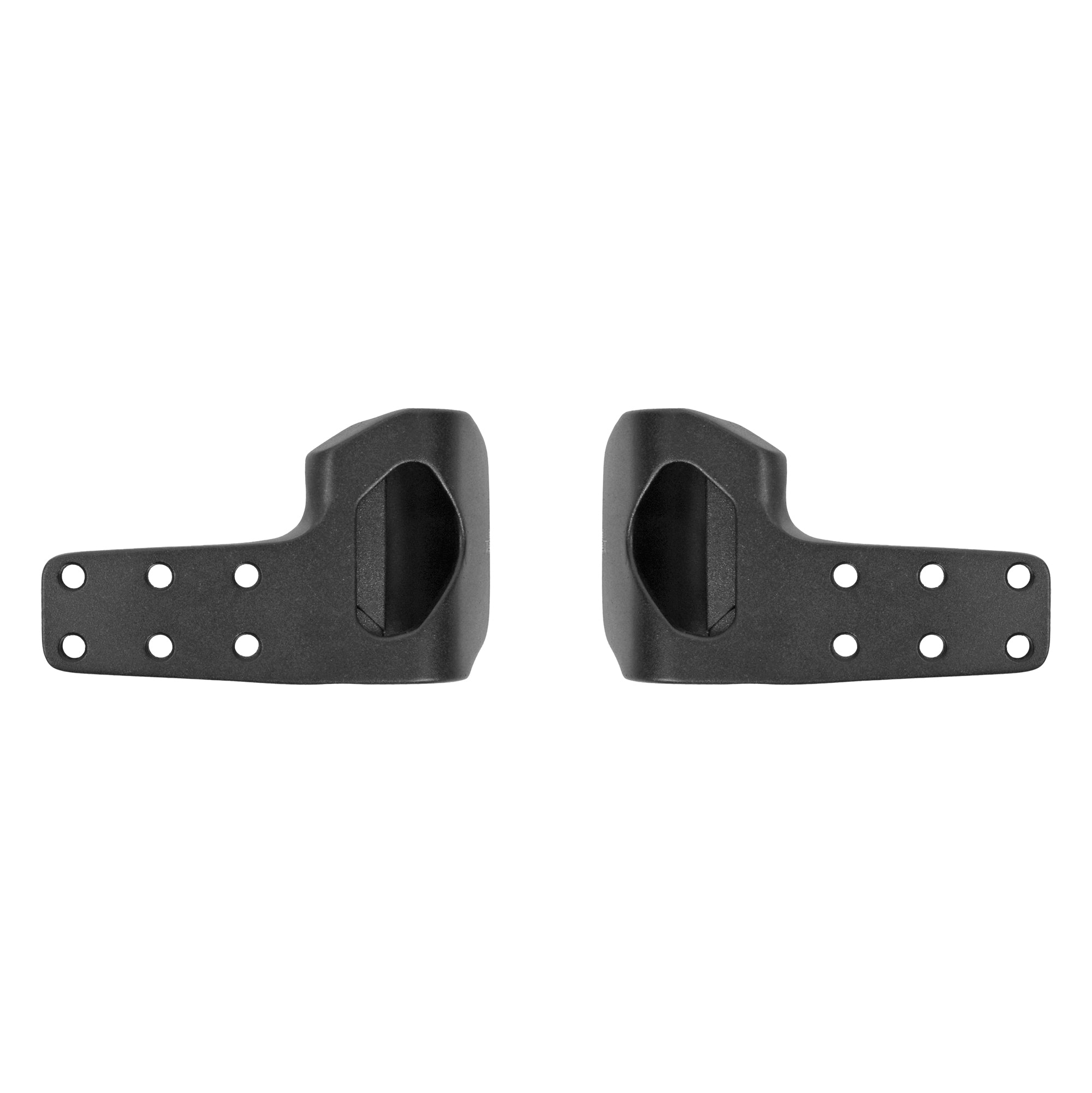

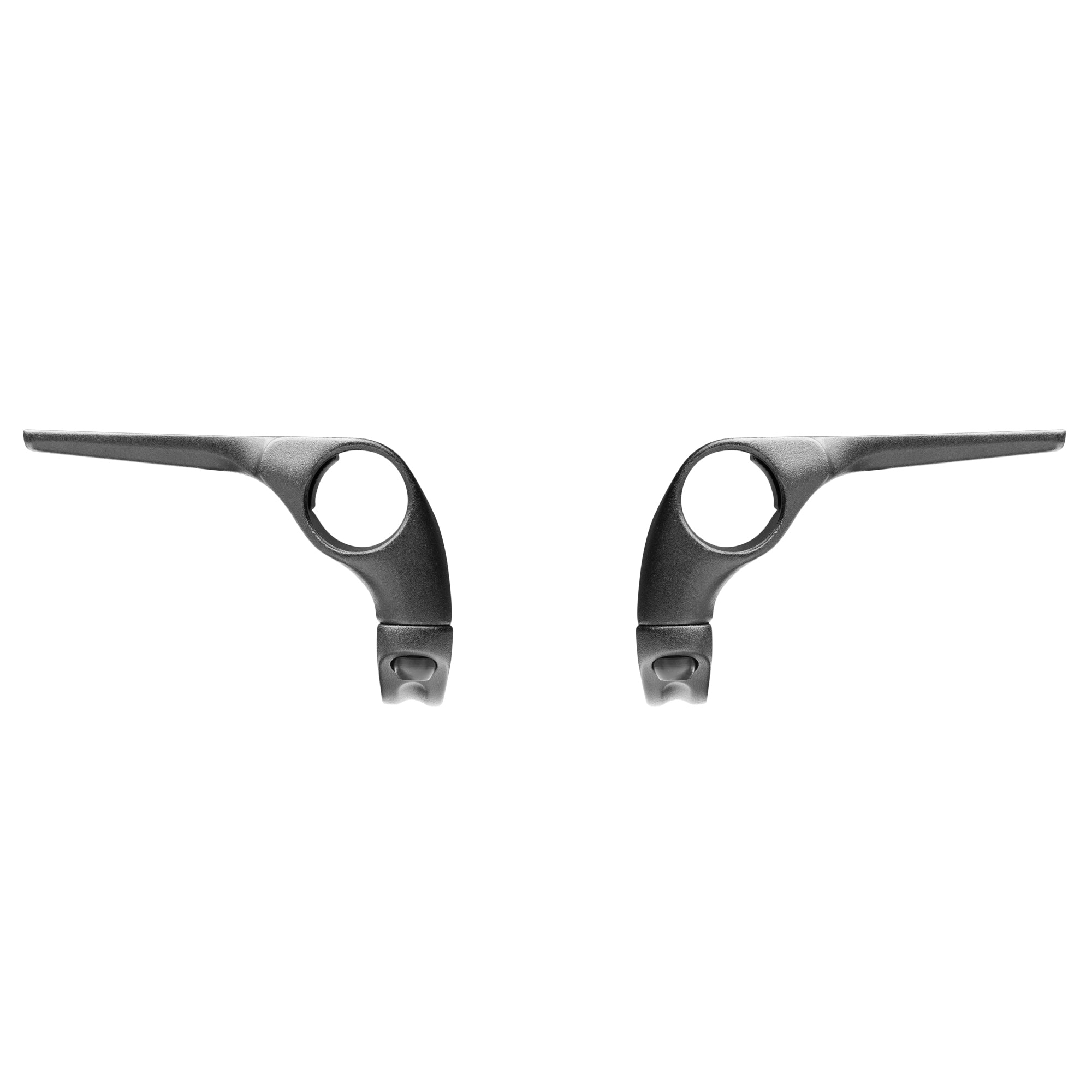

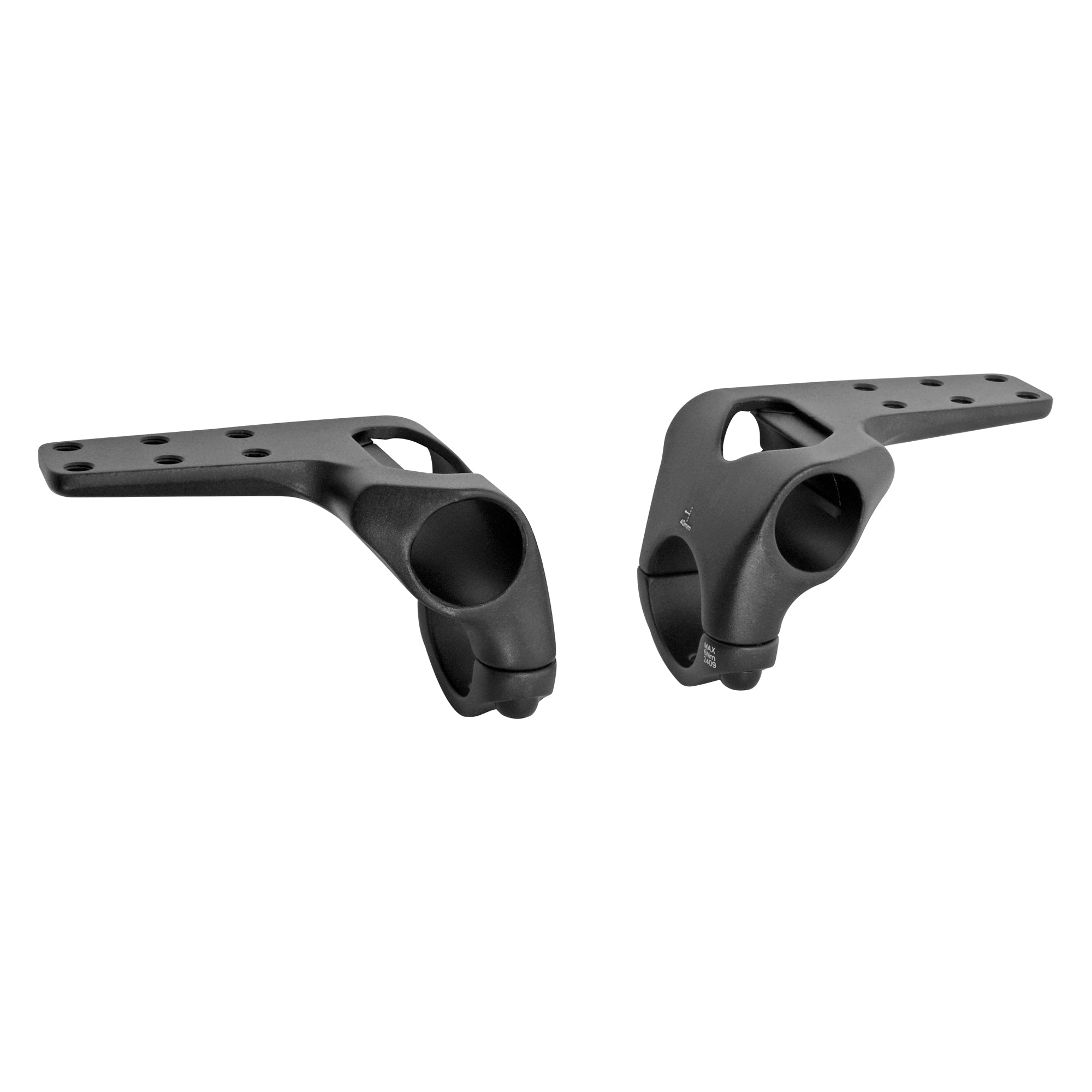

The Supersonic (J5) Bracket is the core of the T-Carbon aerobar line, the Supersonic bracket was built for adjustability with features that enable a customized fit to dial in rider position. The Inline Compression Clamp (ICC) provides single bolt extension adjustment that is simple, secure and easy to use.
-
Simplified Wedge System: Patent pending in-line wedge system designed to reduce drag and even clamping forces.
-
Aerobar Bracket Riser Kit Ability to increase stack up to 70mm with optional Aerobar Bracket Riser Kit.
Tech Specs
-
Materials: Forged 6061-T6 AL
-
Stack Height: 42mm
-
Width Adjustment: 37mm
-
Basebar Clamp Diameter: 31.8mm
-
Extension Clamp Diameter: 22.2mm
-
Color: Black
-
Weight: 266g
Manual
Supersonic (J5) Bracket Kit Installation Instructions
