Overview

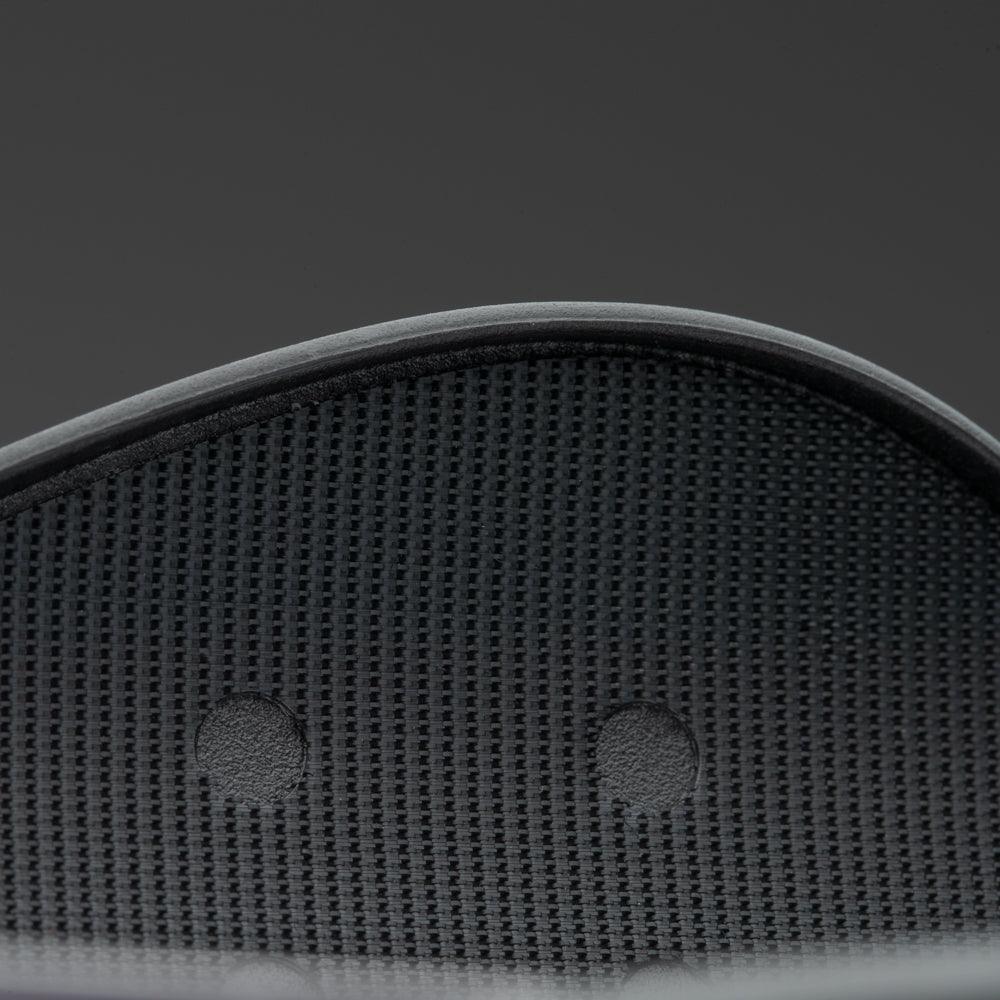

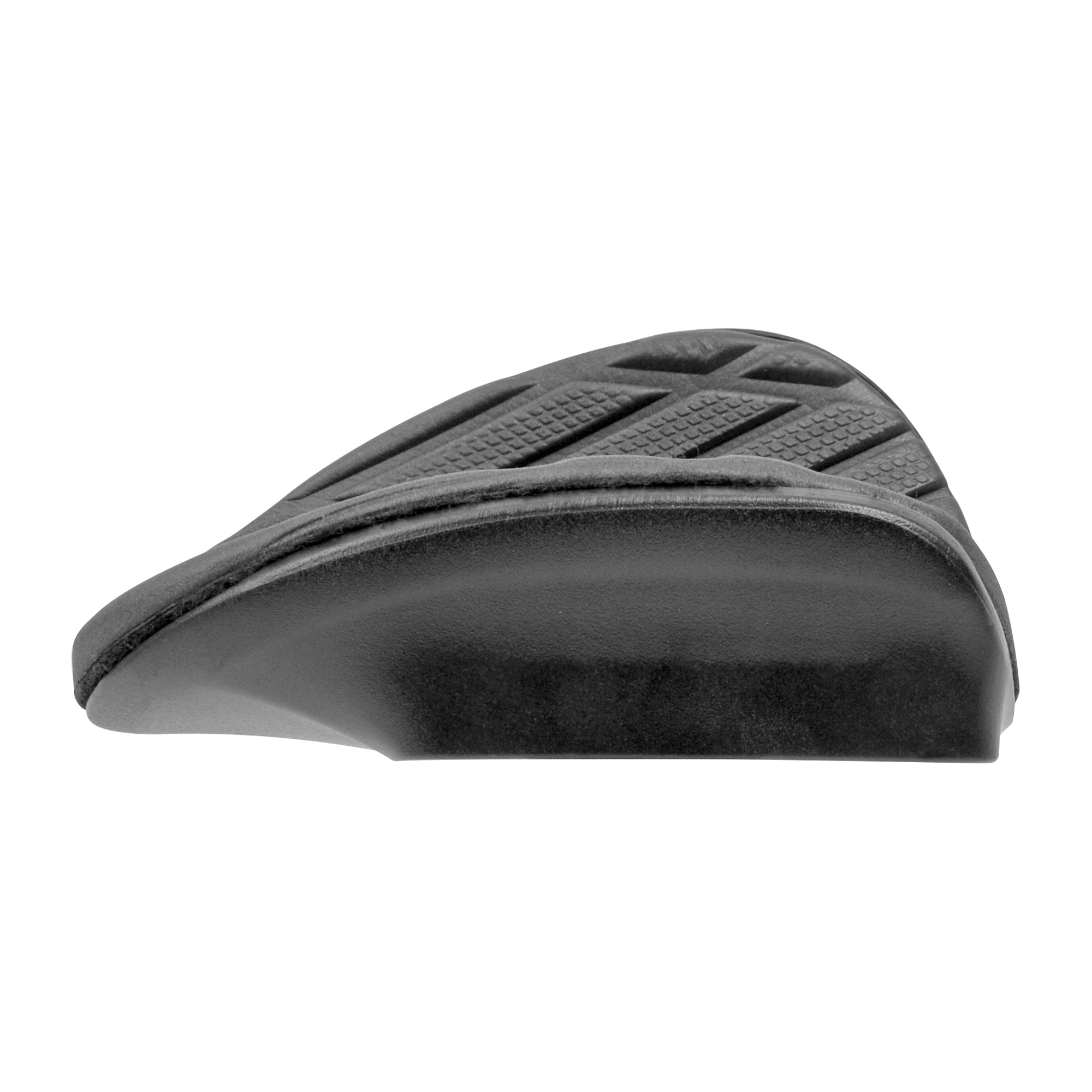

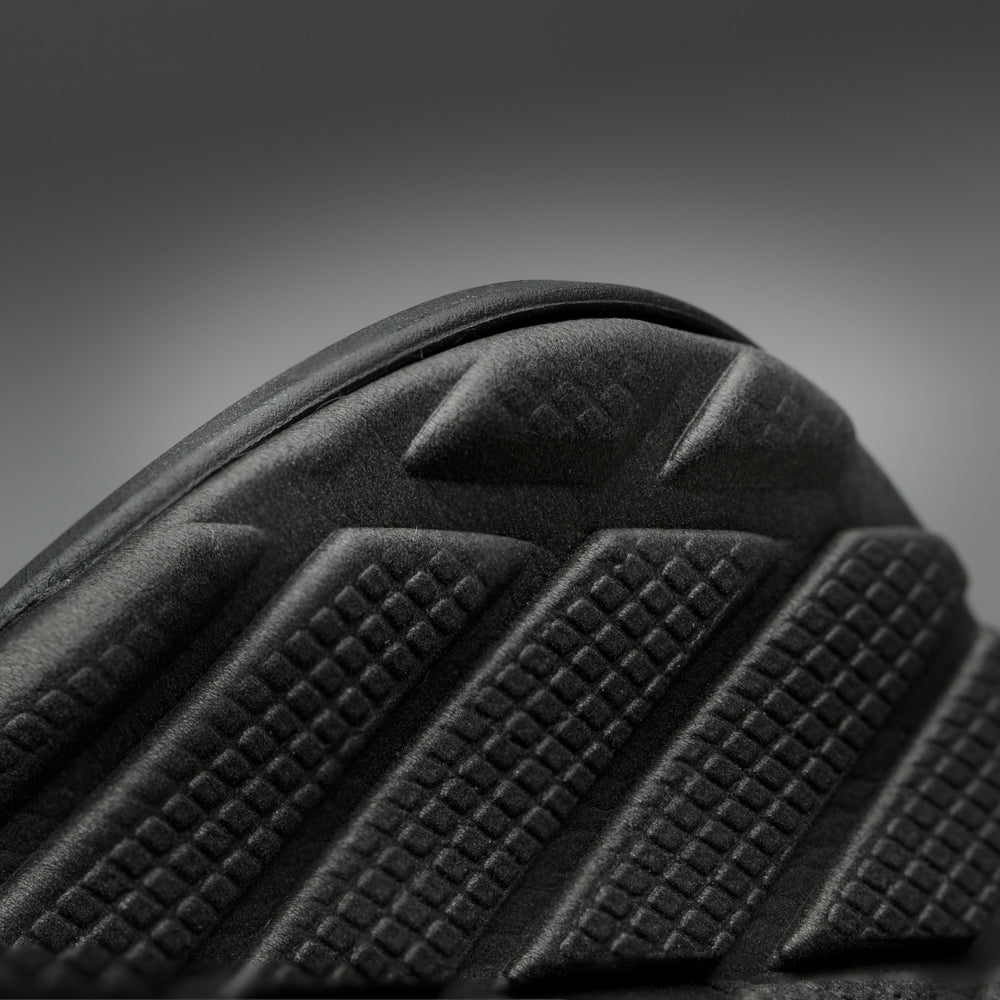

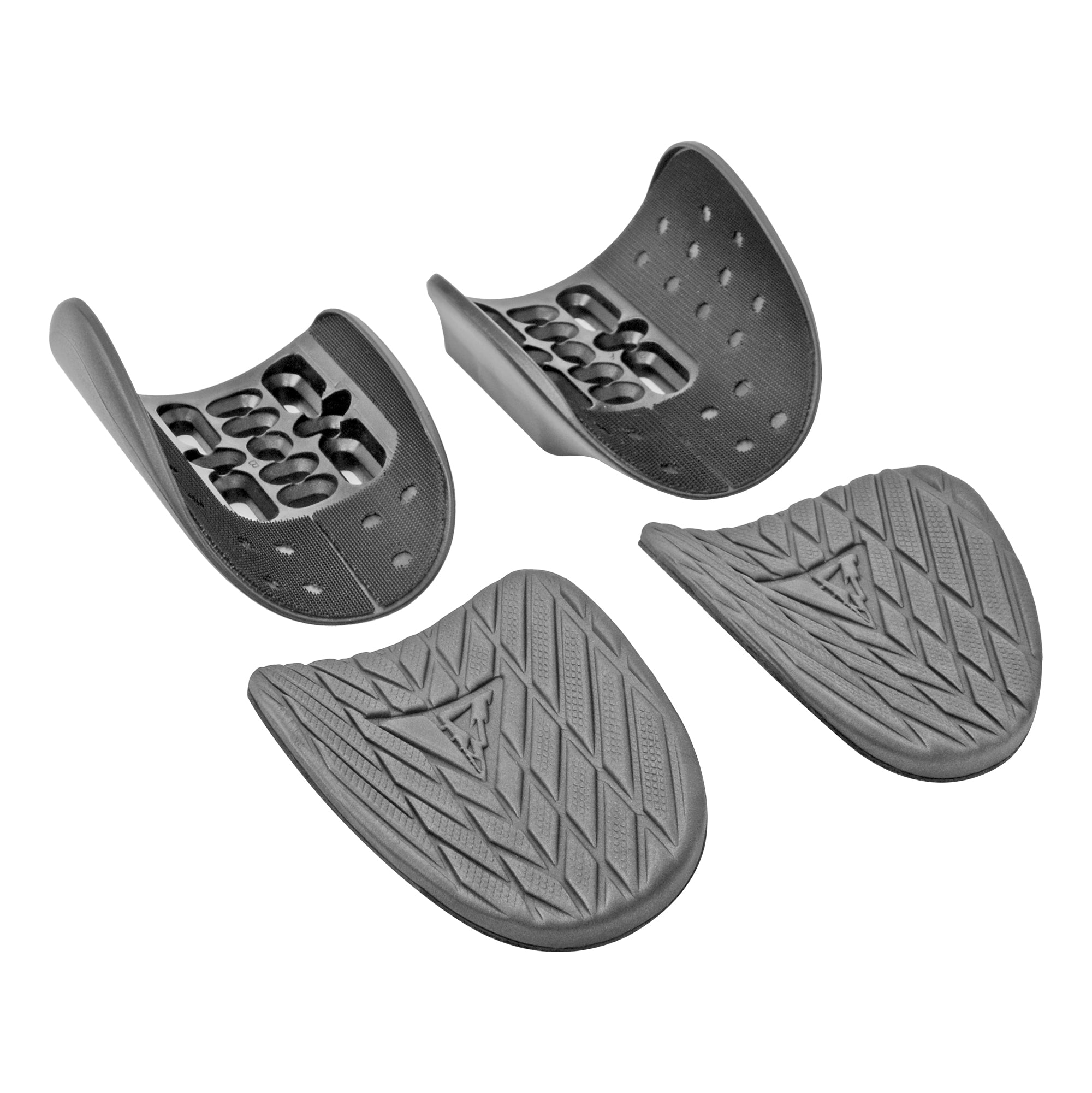

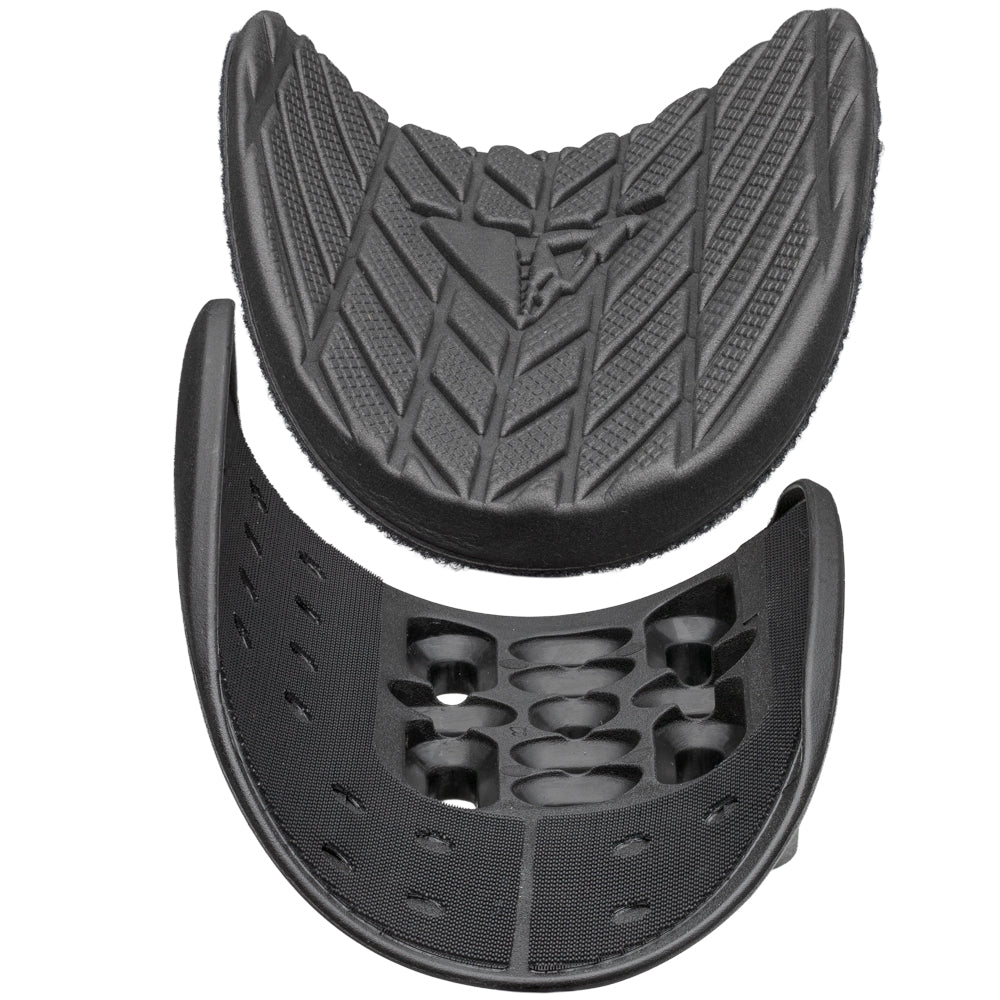

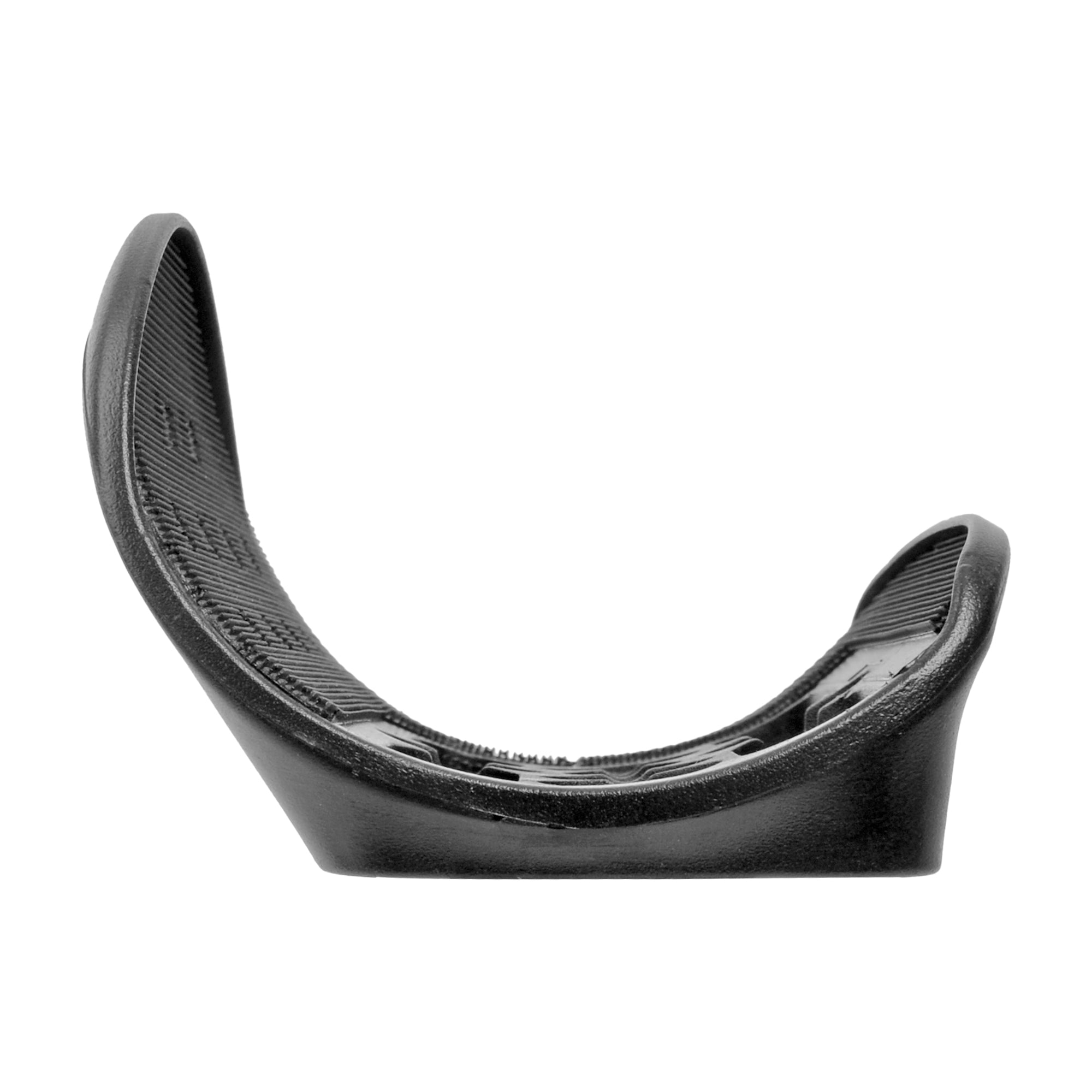

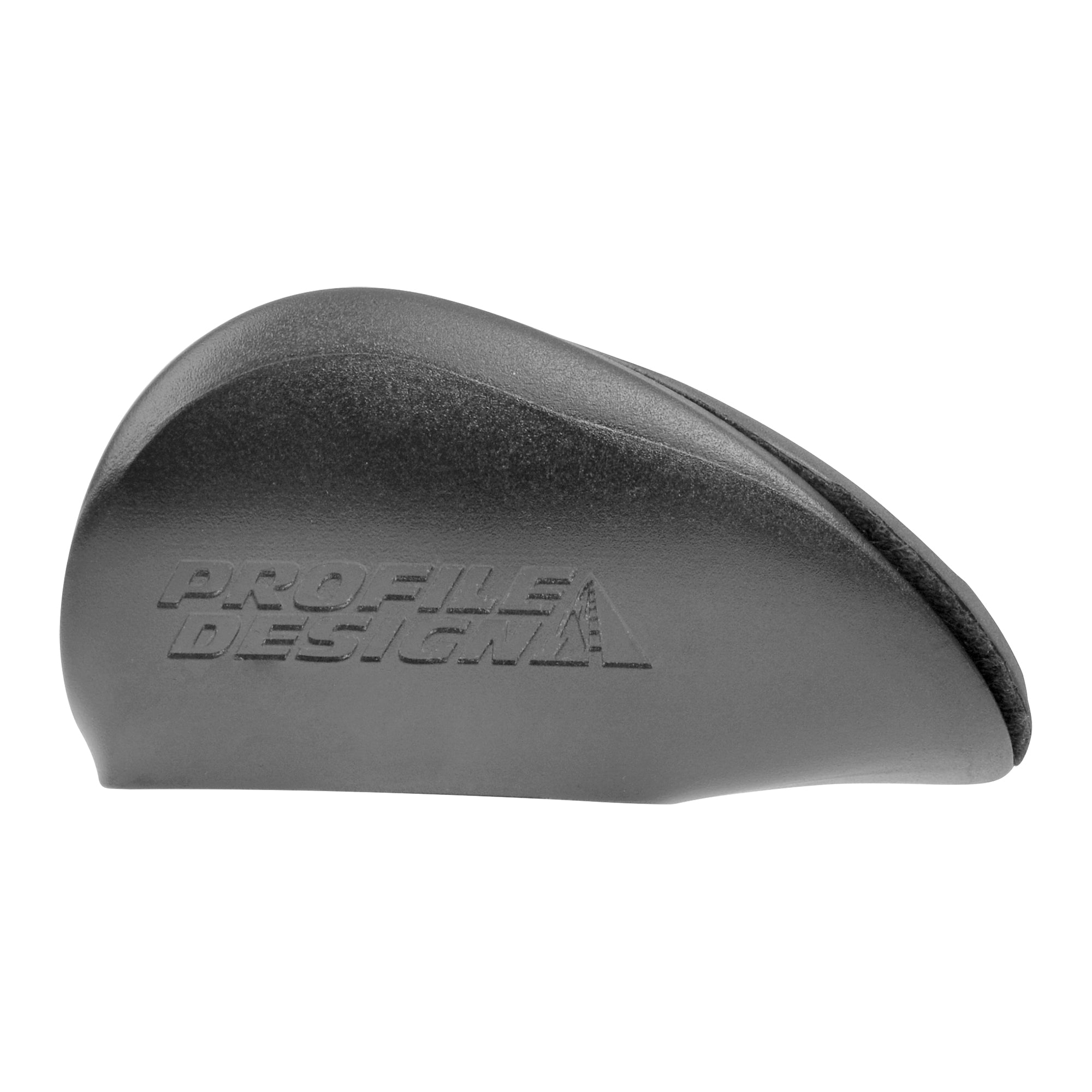

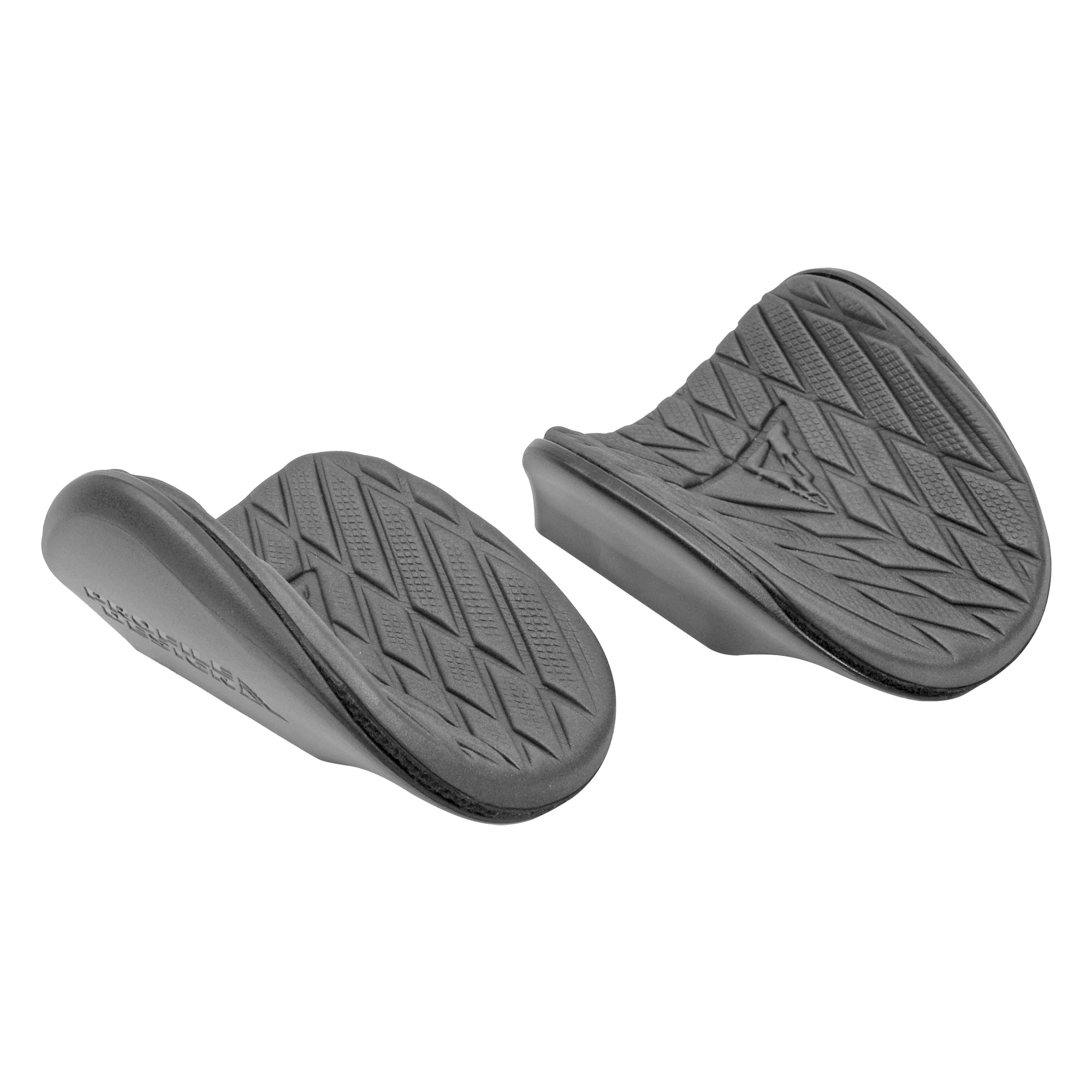

The Race-H Armrest offers the same curvature as our Race+, with the addition of a higher outer wall. This aids riders in holding a narrow elbow position. The cradles bolt pattern allows for a range of spacings – expanding the number of bars that this armrest can fit with. Additionally, the sides of the cup and the pad are designed to present a smooth surface for the air to flow past the cup edges. The Race-H can be paired with any of our current and recent model aerobar's as a potential comfort upgrade.

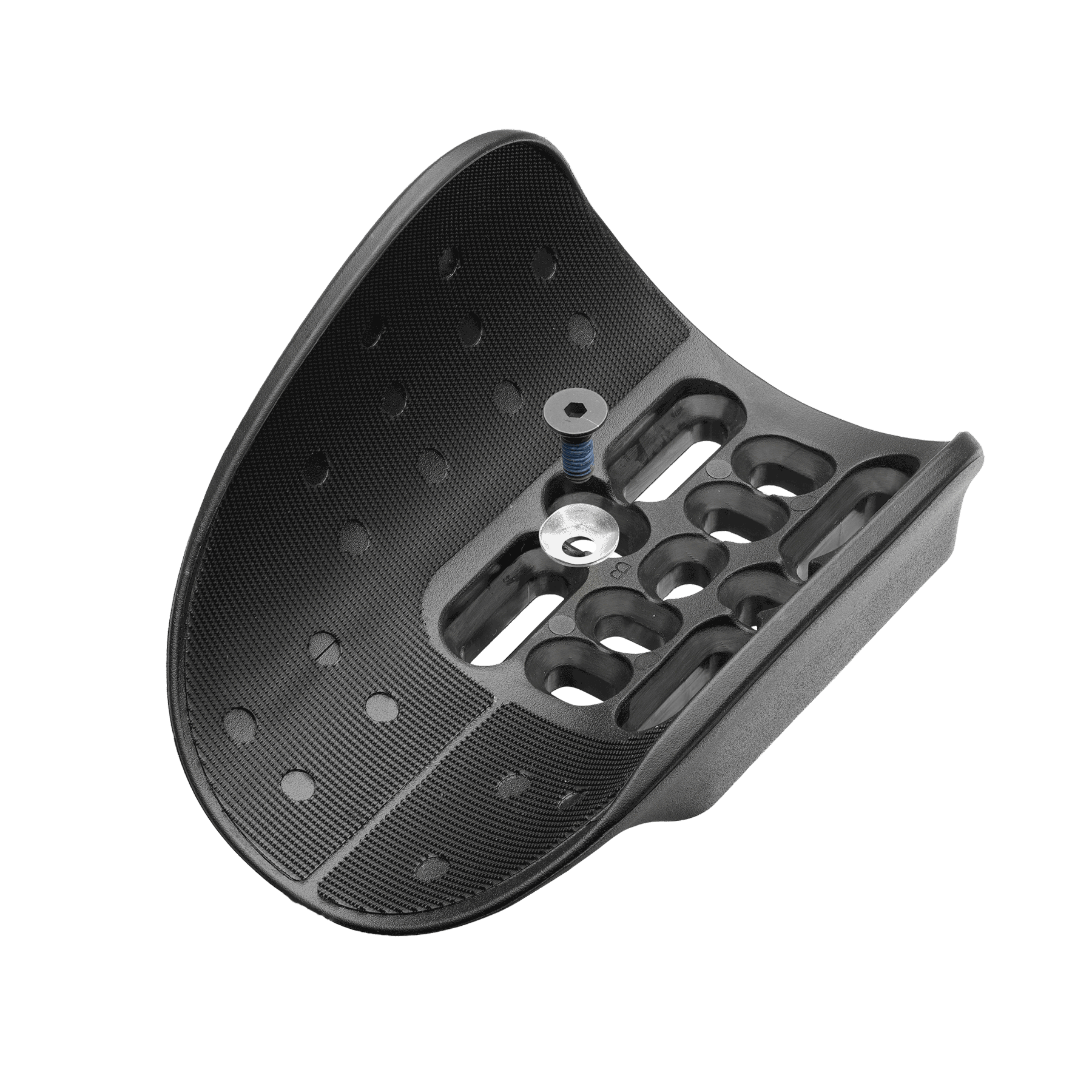

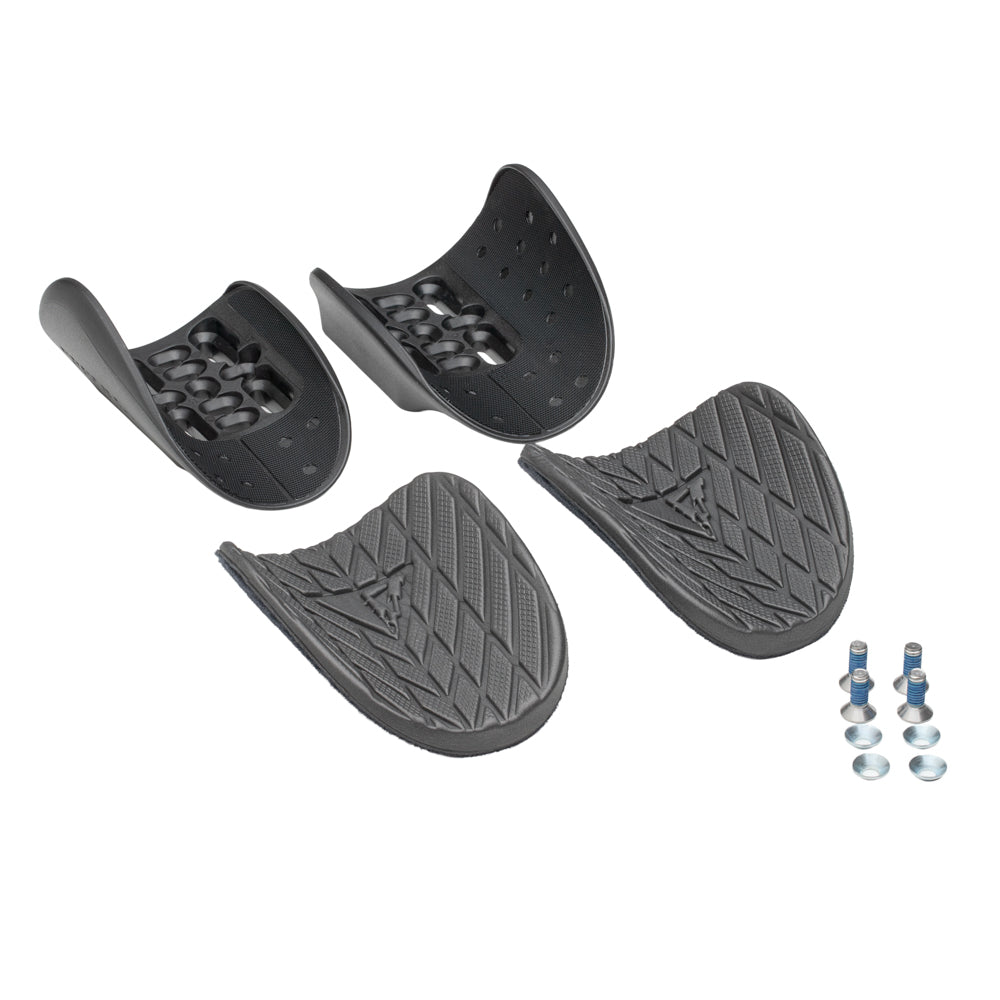

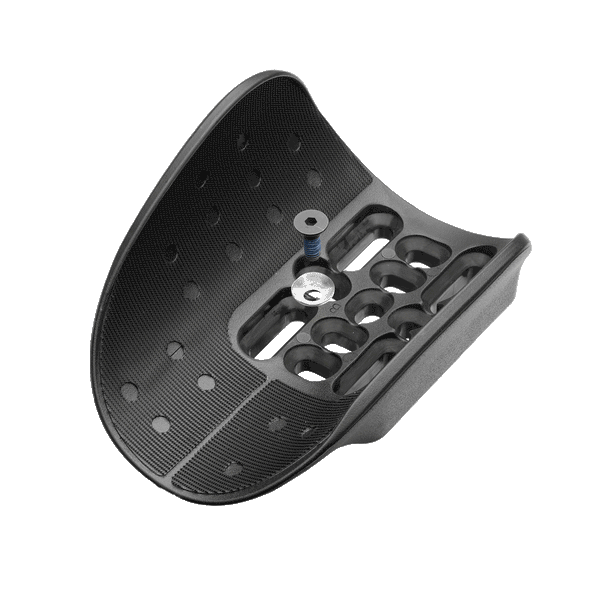

Armrest kit includes PFD armrest compatibility washer - M5 (the washer allows installation with aerobars using M5 bolts)

Specifications
-

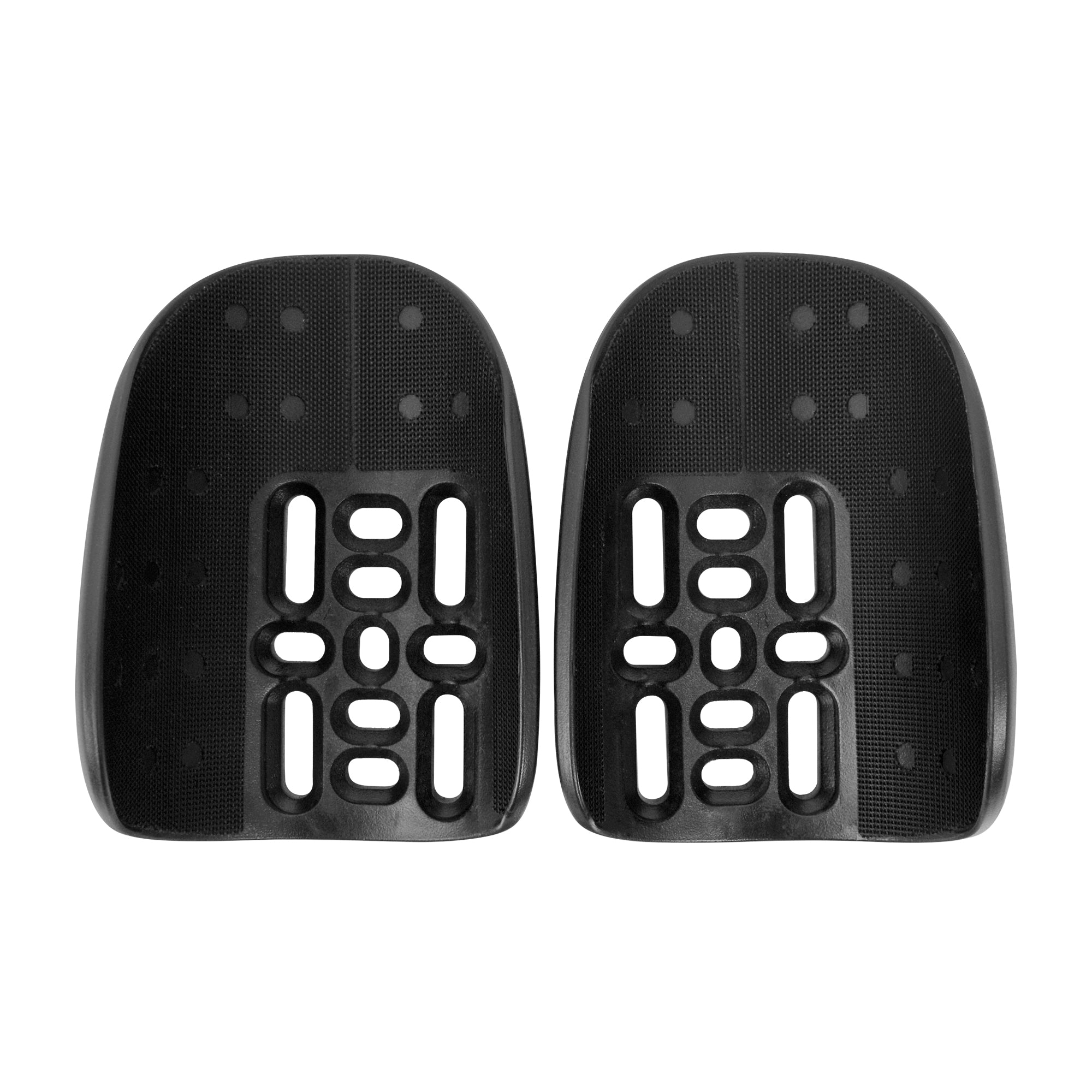

Bolt Spacing Options: 12.5mm, 14mm, 16.5mm, 18.5mm and 29mm
-
Reach Increment: 15mm
-
Width Increment: 18.5mm
-
Length: 124mm
- Height: 64mm
-
Stack: 8mm
- Width: 87mm
Tech Specs
-
Armrest Construction: Injected Nylon/Glass Fiber
-

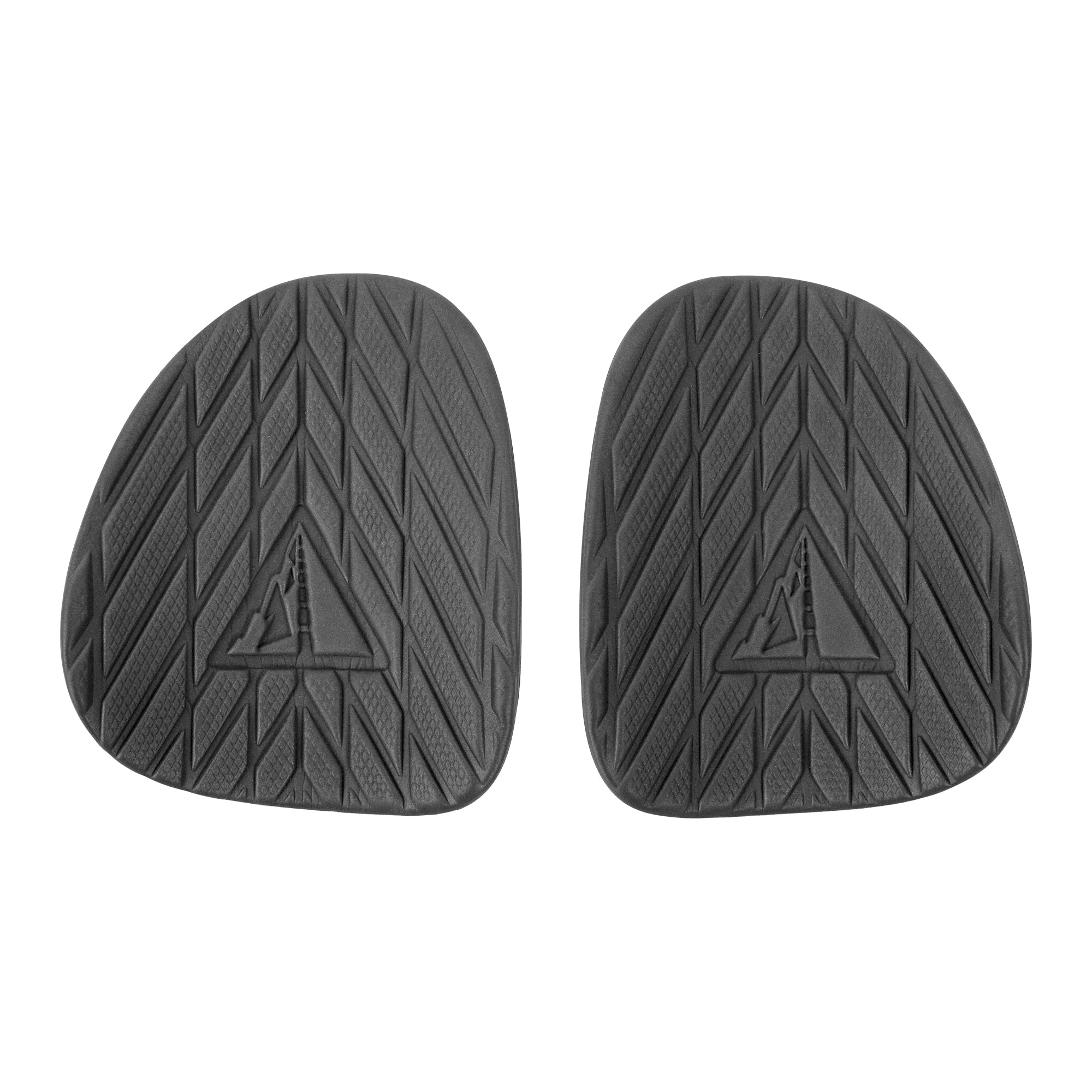

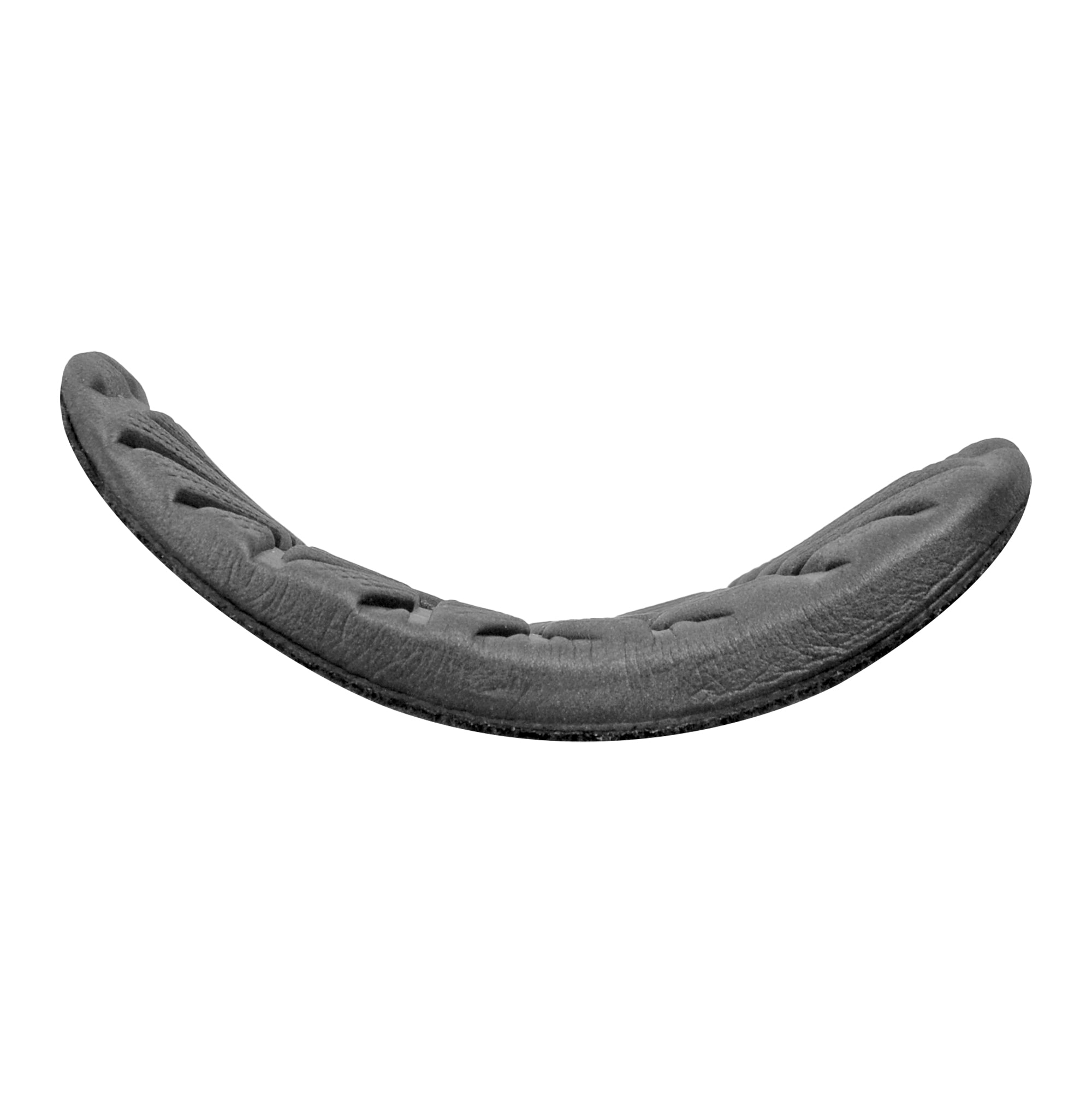

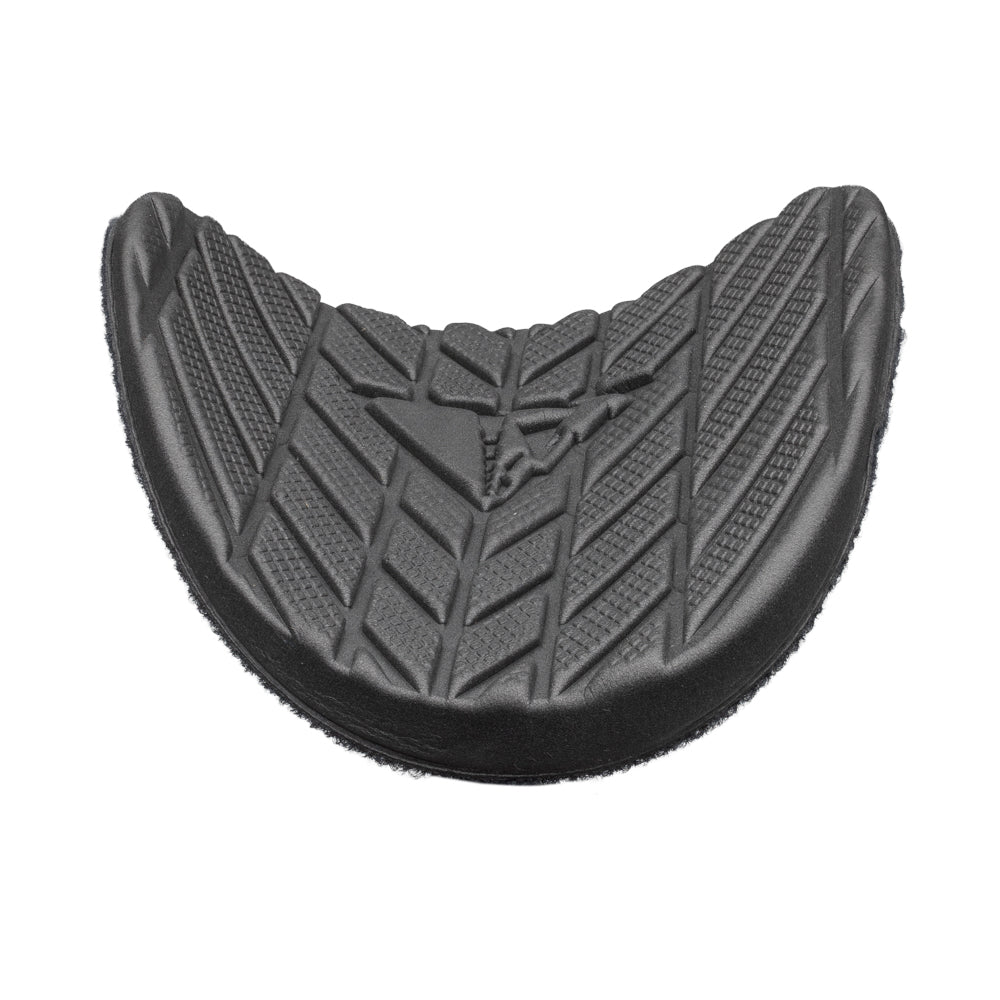

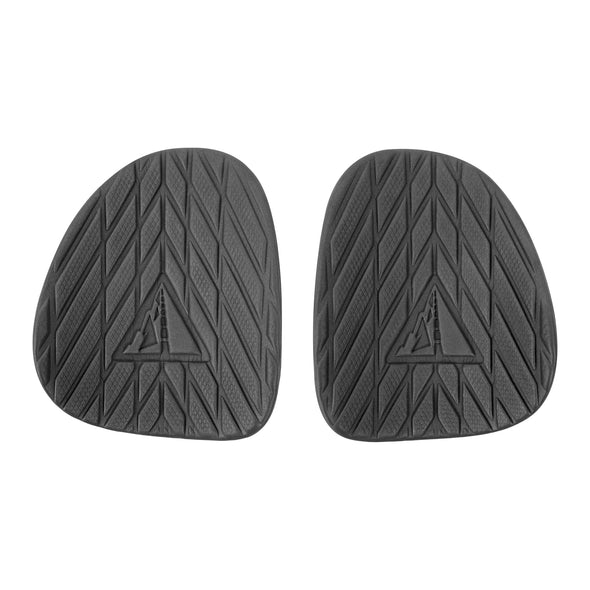

Pad Construction: EVA foam
-
Pad Model: Race-H Ultra 10-5mm
-
Color: Matte Black
-
Hardware: M6 x 16 SS

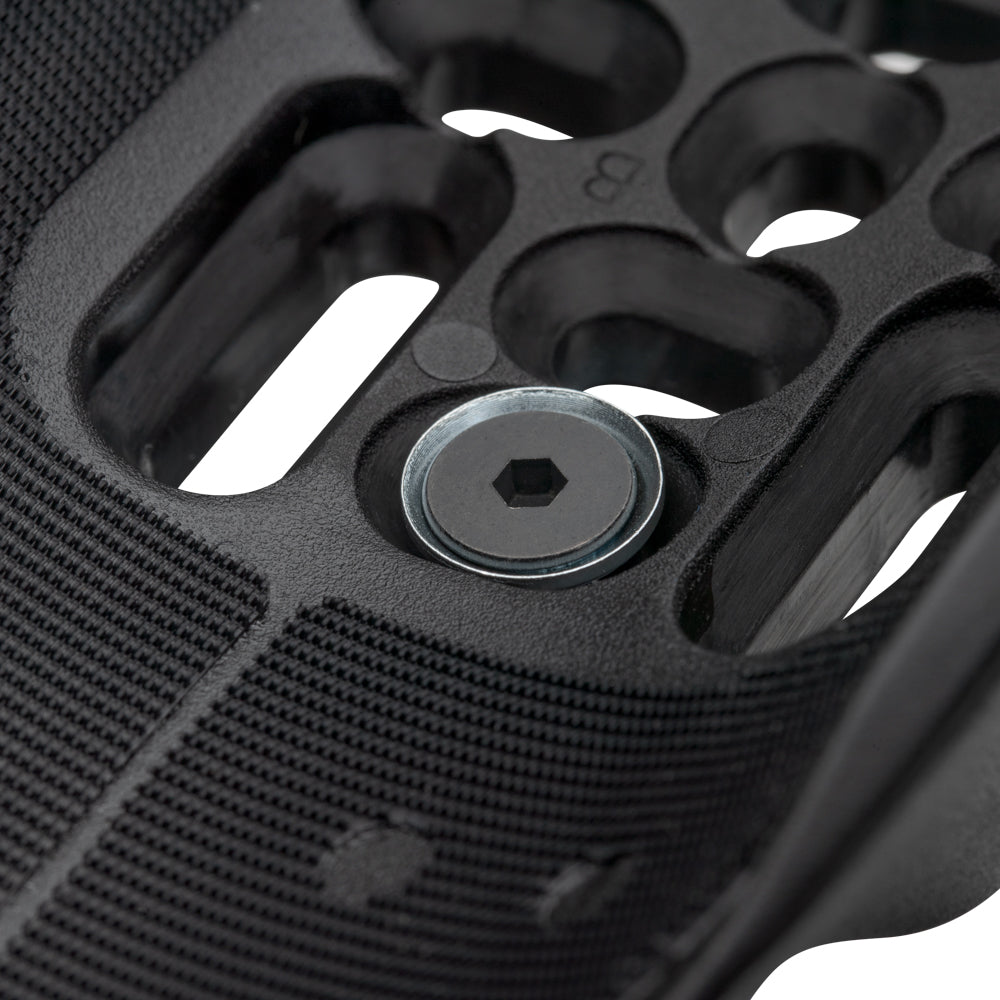

- Washer: PFD armrest compatibility washer - M5 (washer allows installation with aerobars using M5 bolts)
-
Weight: 246g/pair
Manual
Race-H Armrest Kit Installation Instructions
